CIP for Hygienic Heat Exchangers: Design Mistakes That Cause Downtime
Prevent CIP Problems in Heat Exchangers Before They Fail

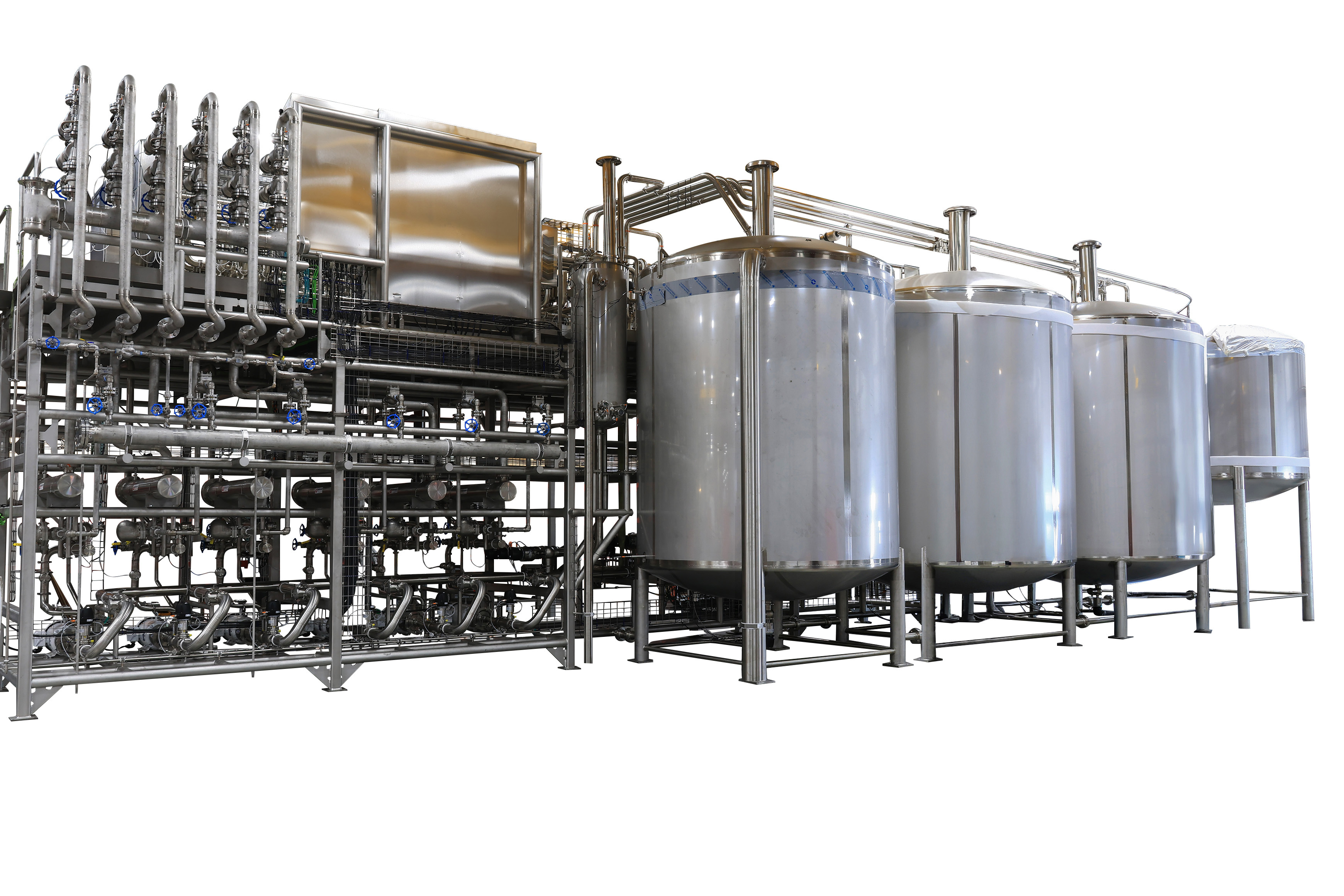

Clean-in-place (CIP) systems are critical in hygienic processing environments. When properly designed, they allow plate heat exchangers (PHEs) and related equipment to be cleaned effectively without disassembly. When design mistakes occur, however, the results can include persistent fouling, bacterial growth, product contamination, and costly downtime.
Many CIP failures are not immediately obvious. Systems may appear to function normally for months before hidden deposits accumulate and performance declines. The most important factor in effective CIP for plate heat exchangers is achieving the manufacturer-specified cleaning flow rate. These recommendations account for fouling behavior, product characteristics, and plate geometry. When systems fail to meet those conditions, CIP performance declines—often without immediate warning.
Cleaning Flow Requirements: The Foundation of Effective CIP
Effective CIP in plate heat exchangers depends on achieving sufficient flow velocity to create turbulence. This turbulence generates the shear forces needed to remove fouling from plate surfaces and ensures cleaning chemicals reach all internal areas.
Manufacturer-Defined Flow Rates: The Real Standard
Every hygienic plate heat exchanger should come with a recommended cleaning flow rate from the manufacturer. These values are not arbitrary—they are based on expected fouling conditions, product characteristics, and plate design.
For hygienic service heat exchangers, manufacturers should provide recommended CIP flow guidance based on plate geometry and expected fouling conditions.
In many cases, required CIP flow rates are significantly higher than process flow rates. This creates a common issue: systems are designed around production needs but cannot achieve the flow required for effective cleaning.
At CSI, systems are engineered to meet these cleaning requirements—even when they exceed the capabilities of upstream or downstream processes. This may include engineered, localized flow-boosting strategies that allow the heat exchanger to achieve the required CIP velocities without unnecessarily over-sizing the entire facility CIP system.
What Happens When Velocity Is Too Low
Low flow velocity is one of the most common causes of ineffective CIP.
When the cleaning solution moves too slowly, deposits remain inside the exchanger. These deposits act as nucleation sites where additional fouling accumulates over time. In hygienic systems, these sites also become locations where bacteria and contaminants can grow.
The risk is that the problem may not appear immediately.
At first, everything seems to be working:
- Cleaning temperatures are reached
- The process runs normally
- Product contamination does not appear
However, within the exchanger, deposits may slowly accumulate in crevices or low-flow areas. Over time, the contamination load increases beyond the CIP cycle's ability to suppress it.
Eventually, the system experiences:
- Product contamination
- Lost production
- Unplanned downtime to open and manually clean the unit
Because the internal surfaces of a plate heat exchanger cannot be easily inspected during operation, it is critical that proper CIP flow conditions are established from the beginning and supported with clear standard operating procedures (SOPs).
Can Velocity Be Too High?
In hygienic plate heat exchanger applications, excessive CIP velocity is rarely a concern. Heat exchanger manufacturers establish recommended cleaning flow rates that are designed to maximize turbulence and cleaning effectiveness while remaining within safe operating limits for the equipment.
In practice, insufficient velocity is a far more common problem than excessive velocity. When flow rates fall below recommended levels, the turbulence required to remove product deposits and fouling decreases, allowing residues to remain on heat-transfer surfaces.
However, achieving the correct flow rate is not simply a matter of supplying enough CIP volume. The flow must also be distributed properly throughout the heat exchanger and the overall CIP system.
Flow Distribution Mistakes During CIP
Another issue frequently encountered in plate heat exchanger cleaning is improper flow distribution during CIP cycles.
One common mistake occurs when heat exchangers are cleaned as part of a large facility-wide CIP loop. In these cases, pressure losses across the system can reduce flow rates below what the exchanger needs for proper cleaning.
When flow velocity drops too low, fouling is not fully removed.
A better approach is often to isolate the heat exchanger during CIP, allowing higher flow velocities and better cleaning performance.
Large or multi-pass exchangers require additional attention. Each section should be evaluated to ensure that adequate velocity and cleaning conditions are present throughout the unit.
If the exchanger does not receive the required flow, the rest of the CIP system performing correctly does not matter.
Warning Signs of Incomplete Cleaning
Facilities often detect CIP problems indirectly through operational indicators.
Some common warning signs include:
- Deviation from clean pressure drop baseline
- Increased frequency of manual cleanouts
- Product carryover between batches
- Rising microbial counts despite consistent CIP
- Early-cycle discoloration or turbidity
Monitoring these signals helps operators identify CIP issues before they escalate into contamination events.
Why “Like-New” Baseline Data Matters
One of the most overlooked aspects of CIP validation is establishing a clean baseline when a heat exchanger is first installed.
Pressure drop across a newly cleaned unit provides a reference point for long-term performance. As fouling develops, pressure drop behavior changes—even if CIP cycles appear to be running correctly.
Without this baseline, facilities often miss early warning signs of incomplete cleaning. Issues may only be discovered years later, when contamination events or product carryover begin to occur.
Tracking pressure drop trends over time allows operators to identify fouling earlier and take corrective action before performance degrades.
Monitoring Data That Matters
Operators should consistently track performance indicators that reflect cleaning effectiveness.
Two of the most important metrics include:
- Pressure Drop Across the Heat Exchanger
Changes from established clean baseline values can indicate fouling, scaling, or incomplete cleaning. - Biological Load or Microbial Trend Data From Product Streams
Rising contamination levels may signal hidden deposits or harborage points inside the heat exchanger.
These indicators help facilities identify trends early and address CIP performance issues before they require major intervention.
What Facilities Must Get Right When Redesigning a CIP Loop
If a facility is redesigning its CIP system, there are two priorities that cannot be compromised.
First, the system must deliver adequate velocity through the heat exchangers to create the turbulence required for effective cleaning.
Second, the cleaning chemicals must be compatible with the elastomers in the exchanger and capable of removing the specific fouling present in the product stream.
When these fundamentals are addressed during design, CIP performance becomes predictable—and failures become far less likely.
What Actually Causes CIP Failure in Heat Exchangers
A leading cause of CIP failure in hygienic heat exchangers is not chemistry—it is insufficient flow.
When systems are not designed to meet manufacturer-recommended cleaning velocities, fouling persists, the risk of contamination increases, and downtime becomes inevitable.
Facilities that prioritize CIP during system design—rather than treating it as an afterthought—achieve more consistent cleaning, longer run times, and fewer disruptions.
That is the difference between a system that appears to work and one that is engineered to perform.
CSI systems are engineered to meet these requirements from the start—ensuring cleaning performance is built into the design, not left to chance.
