Photo Galleries
At CSI, our engineers pride themselves in doing the impossible.
Browse our photo galleries below to see examples of equipment designed and manufactured by CSI.
CSI offers a wealth of onsite experience with process piping projects, equipment testing, and system start-ups. From CIP and process skids to valve manifolds and utility stations, we can provide everything you need to complete your process system.
Process Skids
At CSI, we specialize in building process skids, including WFI/DI distribution, buffer prep, filtration, separation, biowaste inactivation, and more.
CIP Skids
CSI's custom stainless steel CIP skids comply with 3-A, USDA, FDA, PMO, and CGMP. Each system includes pre-piped steam, air, and water.
Hot Water Sets
CSI's hot water sets are built to sanitary standards and are fabricated using an all stainless steel construction for a hygienic long lasting design.
Transfer Panel
With our patented spool design and distinctive manufacturing method, CSI is the leading supplier of transfer panels for virtually any application.
Utility Stations
CSI offers utility stations for CIP/SIP routing, buffer solutions, and liquid source gases in a variety of mounting options and materials.
Holding Tubes
CSI builds holding tubes for pasteurization, sterilization, thermal deactivation, or tempering, that require a dwell time at a set temperature.
Valve Manifolds
CSI builds valve manifolds for applications such as silo bays, filling lines, CIP distribution/return, and bulk ingredient distribution.
Pump Carts
Choose from CSI's standard, stainless steel pump carts or custom pump carts built to 3-A, USDA, FDA, and PMO specifications.
Custom Fittings
From a simple point-of-use fitting to a complex auto docking system, our team will turn your concept into a reality.
Vessel Trim
CSI offers innovative design for vessel trim, including dip tubes, no-foam inlets, spray ball assemblies, overflow and vent piping, and more.
ToteStands
Tote Stands aid in loading and unloading bulk containers and are perfect for applications that require minor ingredients, colorants, and flavorings.

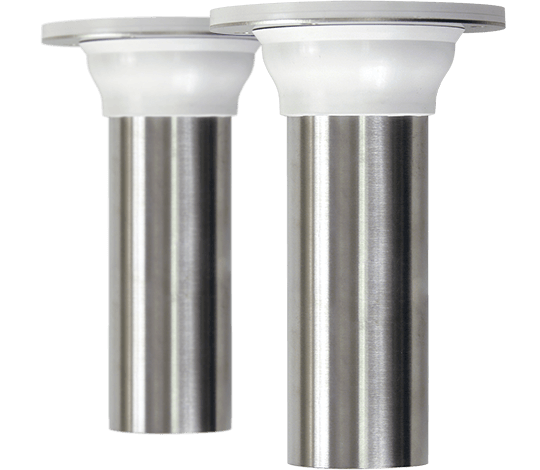

Pipetite®
Pipetite seals around pipe as it passes through walls. Pipetite is flexible, so it stays in place and maintains a seal despite pipeline movement.
Installation
At CSI, we understand how a sanitary process system must be installed to provide the cleanliness and function for which it was designed.
CIP 2.0
The CIP 2.0 skid is a state-of-the-art control system that incorporates the latest clean-in-place technology from Rockwell Automation/Allen Bradley.
Jacketed Tubing & Fittings
Jacketed tubing provides a consistent controlled temperature that is not achievable with insulation or traditional pipe heating methods.
Valve Modifications
CSI offers a variety of valve modifications and is able to handle the most complex modifications to almost any valve.
Real Corrosion
Did you know corrosion in the processing industry has direct costs of over $2 billion every year in the US alone? Here are some examples of corrosion.
Industrial Refrigeration
Industrial Refrigeration focuses on providing design, layout, installation, and implementation services for ammonia refrigeration systems.
