Pipetite®: Protective Seal for electrical, construction, plumbing, and more.

If you have a penetration that needs sealing, Pipetite® has an application.

Superior quality and less expensive than common flanges, escutcheons, wire grommets and cord grips, Pipetite's applications are endless. It is an effective option to seal pipe, tube, wire, conduit, or other structural equipment through concrete walls, outside piping, ceiling holes, metal enclosures, and various openings.

Applications

Pipetite Electrical Application
Electrical

Protect wires, cords, and enclosure interiors with wire grommets.

Pipetite Plumbing Application
Plumbing

Create a clean look, while also allowing for pipeline movement.

Pipetite Construction Roof Application
Construction

From roof penetrations to HVAC tubing, protect your handiwork with an effective seal.

The one-and-done solution for sealing penetrations

Pipetite® is completely flexible, so it stays in place and maintains a seal despite vibration and movement. Central States Industrial (CSI) stocks Pipetite in several styles and sizes to fit different applications. The air-tight seal keeps water, bugs, dirt, mold, and dust out.

The silicone rubber is resistant to cracking, weathering, extreme temperatures, and water. Even after testing was performed that was equivalent to 158 years of outdoor use, Pipetite remains waterproof and shows no sign of degradation. Contributing to Pipetite's durability is a temperature rating of -40° to 500°F. Pipetite retains its flexibility indefinitely, regardless of the conditions.

FEATURES
  • Safely and cleanly run wires through walls, enclosures, cabinets, and floor and ceiling penetrations
  • Protects wires from sharp edges and chaffing that can cause shorts
  • Eliminates air/water leaks
  • Works great for electrical, ethernet, conduit, tubing, thermal ducting, and air lines
  • Seven sizes to fit up to 15 inch OD pipe or tube
  • Easily trimmed to size
  • Totally self-sealing—no sealant required
Shop Now

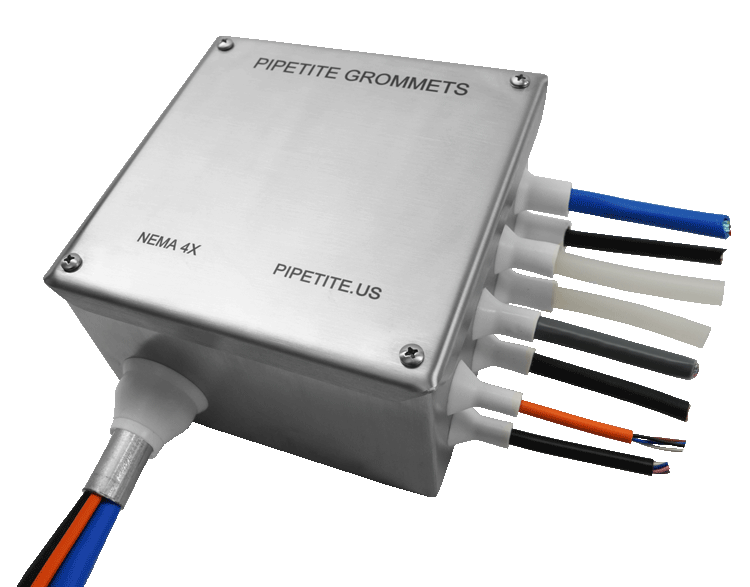

Pipetite Grommets in Metal Enclosure
Pipetite Grommets in Large Metal Enclosure

Protect Electrical Wiring with Pipetite Grommet and Mini Grommet

Ideal for creating watertight seals around wires and tubing as they enter cabinets, panels, and enclosures. Perfect for electrical contractors, they provide a tight, reliable seal for penetrations in cabinets, panels, and enclosures. The flexible lip seal makes installation fast and easy.

Mini Grommets are NEMA rated for Type 4, Type 4X, and Type 6 enclosures.

FEATURES
  • Available in sizes to fit up to 7 inch OD pipe, tubing or hose
  • Flexible lip seal fits wall thickness from 18 gauge to 11 gauge (0.048 - 0.120 inches)
  • Constructed of hygienic white silicone
Shop Now

Grommets

Grommet-Pipetite-Dimensions
Dimensional Data
SizeTube OD

(in)

A

(in)

B

(in)

C

(in)*

Item #
10.00 - 1.001.891.382.12PTG1-000
20.00 - 2.563.232.752.50PTG2-000
30.00 - 3.744.724.003.25PTG3-000
42.76 - 5.316.305.752.50PTG4-000
53.94 - 7.097.957.253.12PTG5-000

Sizes 1, 2, and 3 are full cones. Sizes 4 and 5 are not available as full cones.
*Max height

Mini Grommets

Mini-Grommet-Pipetite-Dimensions
Dimensional Data
SizeTube OD

(in)

A

(in)

B

(in)

C

(in)*

Item #
10.250.870.631.31PTMG-1
20.310.870.631.25PTMG-2
30.380.870.631.25PTMG-3
40.500.870.631.12PTMG-4

*Max height

A clean look that allows for pipeline movement

While most pipe escutcheons look good initially, over time, they break and separate from the wall, leaving behind an ugly and unprofessional appearance. With Pipetite Standard and Reboot, you can provide a flexible seal that stands the test of time.

Standard is ideal for new piping installations, and the split design of the Reboot works for existing pipe. The self-sealing design also eliminates the need for caulks and sealants, saving you money, time, and providing a clean and professional look.

    Shop Now

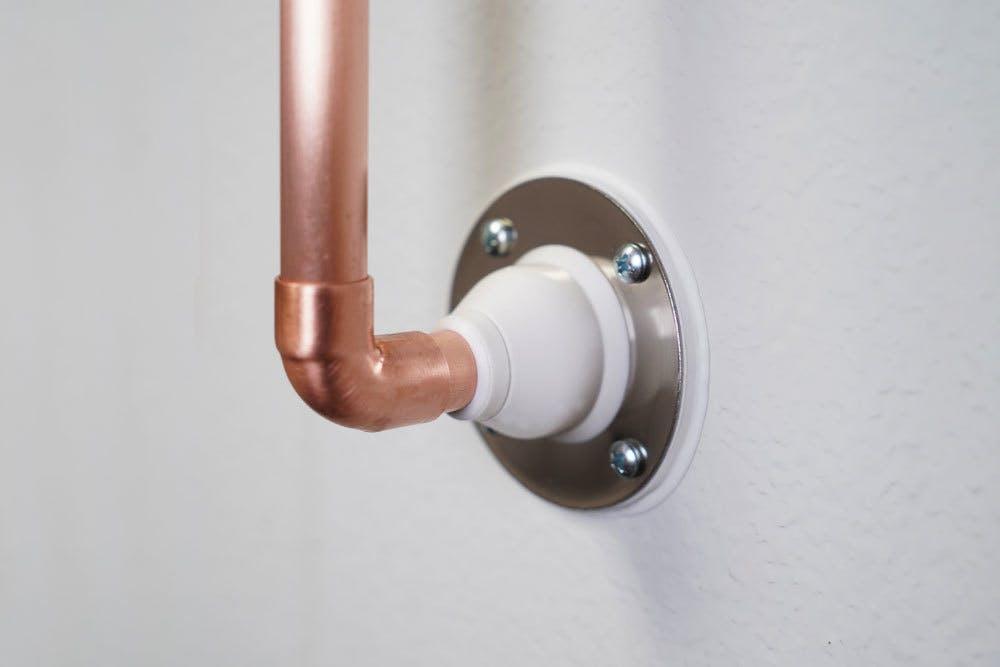

    Pipetite Grommet on Copper Pipe
    Pipetite Standard Dimensional Data
    SizeTube OD

    (in)

    A

    (in)

    B

    (in)

    C

    (in)*

    # of Anchors

    Needed

    Item #
    10.00 - 1.002.762.242.054PT1-000
    10.752.762.241.424PT1-075
    11.002.762.241.264PT1-100
    20.00 - 2.504.173.582.364PT2-000
    21.004.173.581.894PT2-100
    22.004.173.581.384PT2-200
    30.00 - 3.745.795.043.076PT3-000
    33.005.795.041.616PT3-300
    42.76 - 5.317.366.612.526PT4-000
    44.007.366.612.056PT4-400
    53.94 - 7.099.338.393.1510PT5-000
    74.92 - 10.8313.2812.255.1214PTR7-000
    96.50 - 15.0019.3118.397.8720PTR9-000

    Bolt holes are 0.177 inches in diameter.
    Sizes 1, 2, and 3 are full cones. Sizes 4 through 9 are not available as full cones.
    Sizes 7 and 9 can be used as Standard or ReBoot.
    *Max height

    Pipetite Standard FEATURES
    • Available in seven sizes to fit up to 15 inch OD pipe or tube
    • Easily trimmed to size
    • Flexible seal allows movement without damage or loss of seal
    • Predrilled for quick and easy installation with no messy clean-up
    • Materials compatible with cleaning solution
    Standard-Pipetite-Dimensions
    Pipetite Reboot Dimensional Data
    SizeTube OD

    (in)

    A

    (in)

    B

    (in)

    C

    (in)*

    # of Anchors
    Needed
    Item #
    20.00 - 2.504.173.582.365PTR2-000
    30.00 - 3.745.795.043.077PTR3-000
    42.76 - 5.317.366.612.527PTR4-000
    53.94 - 7.099.338.393.1510PTR5-000
    74.92 - 10.8313.2812.255.1214PTR7-000
    96.50 - 15.0019.3118.397.8720PTR9-000

    Bolt holes are 0.177 inches in diameter.
    Sizes 2 and 3 are full cones. Sizes 4 through 9 are not available as full cones.
    *Max height

    Pipetite Reboot Features
    • Available in six sizes to fit up to 15 inch OD pipe or tube
    • Innovative split design installs easily around existing piping
    • Easily trimmed to size
    • Flexible seal allows movement without damage or loss of seal
    • Predrilled for quick and easy installation with no messy clean-up
    • Materials compatible with cleaning solution

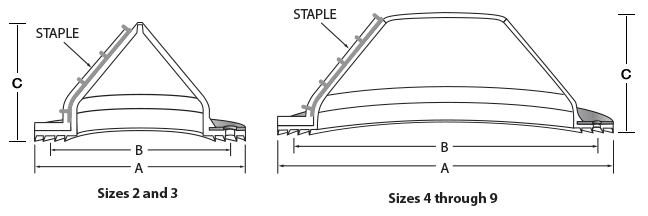

    Reboot-Pipetite-Dimensions

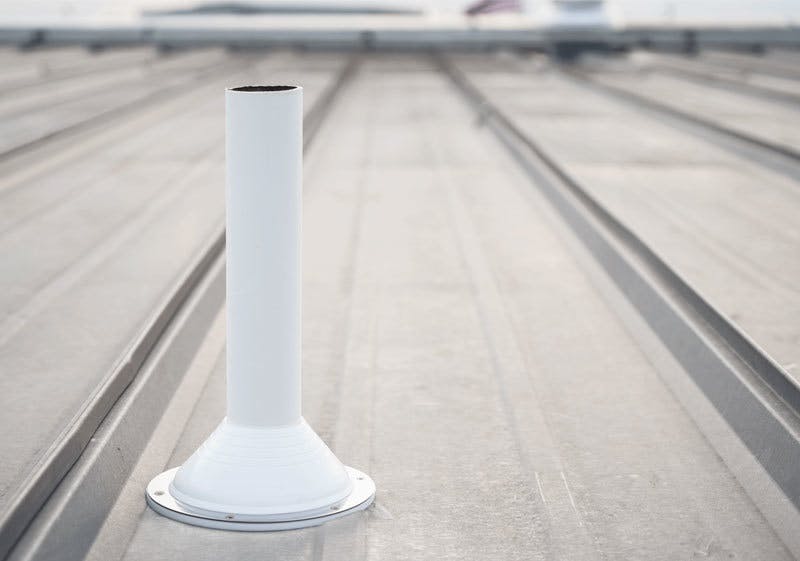

    Pipetite Root Flange Application

    Safeguard your handiwork with the one-and-done seal

    On any construction site or household DIY project, wall, ceiling, and floor penetrations are inevitable. And to protect a home or commercial building, it's essential to seal any holes that expose interior rooms to the exterior environment.

    Pipetite provides a clean and professional-looking seal for plumbing pipe, HVAC tubing, water pipe, and even as a replacement for roof flanges. For new installations, Pipetite Standard works best, while the split design of the Reboot works for existing tube, pipe, and wire.

    Shop Now
    Pipetite Standard FEATURES
    • Available in seven sizes to fit up to 15 inch OD pipe or tube
    • Easily trimmed to size
    • Flexible seal allows movement without damage or loss of seal
    • Predrilled for quick and easy installation with no messy clean-up
    • Materials compatible with cleaning solution
    Standard-Pipetite-Dimensions
    Pipetite Standard Dimensional Data
    SizeTube OD

    (in)

    A

    (in)

    B

    (in)

    C

    (in)*

    # of Anchors

    Needed

    Item #
    10.00 - 1.002.762.242.054PT1-000
    10.752.762.241.424PT1-075
    11.002.762.241.264PT1-100
    20.00 - 2.504.173.582.364PT2-000
    21.004.173.581.894PT2-100
    22.004.173.581.384PT2-200
    30.00 - 3.745.795.043.076PT3-000
    33.005.795.041.616PT3-300
    42.76 - 5.317.366.612.526PT4-000
    44.007.366.612.056PT4-400
    53.94 - 7.099.338.393.1510PT5-000
    74.92 - 10.8313.2812.255.1214PTR7-000
    96.50 - 15.0019.3118.397.8720PTR9-000

    Bolt holes are 0.177 inches in diameter.
    Sizes 1, 2, and 3 are full cones. Sizes 4 through 9 are not available as full cones.
    Sizes 7 and 9 can be used as Standard or ReBoot.
    *Max height

    Pipetite Reboot Features
    • Available in six sizes to fit up to 15 inch OD pipe or tube
    • Innovative split design installs easily around existing piping
    • Easily trimmed to size
    • Flexible seal allows movement without damage or loss of seal
    • Predrilled for quick and easy installation with no messy clean-up
    • Materials compatible with cleaning solution
    Reboot-Pipetite-Dimensions
    Pipetite Reboot Dimensional Data
    SizeTube OD

    (in)

    A

    (in)

    B

    (in)

    C

    (in)*

    # of Anchors
    Needed
    Item #
    20.00 - 2.504.173.582.365PTR2-000
    30.00 - 3.745.795.043.077PTR3-000
    42.76 - 5.317.366.612.527PTR4-000
    53.94 - 7.099.338.393.1510PTR5-000
    74.92 - 10.8313.2812.255.1214PTR7-000
    96.50 - 15.0019.3118.397.8720PTR9-000

    Bolt holes are 0.177 inches in diameter.
    Sizes 2 and 3 are full cones. Sizes 4 through 9 are not available as full cones.
    *Max height
