Collared Spools
Collared spools are used with transfer panels or flow verters to direct fluid flow safely and efficiently. These spools come in 316L, AL-6XN®, or Hastelloy® C-22® in a variety of surface finishes to meet your process requirements. Bevel seat, I-line, DC, and DIN 11864 connections are also available.
Models
- Tri-Clamp
- Butt Weld
Central States Industrial (CSI) offers a full range of hygienic processing equipment and services for the food, dairy, beverage, pharmaceutical, and personal care industries. CSI maintains an extensive inventory of fittings, tubing, pumps, valves, and instrumentation.
Industries
Processed Foods, Biopharmaceuticals, High-Acid Foods, Dairy, Beverages, Brewery, Home & Personal CareTri-Clamp X Butt Weld

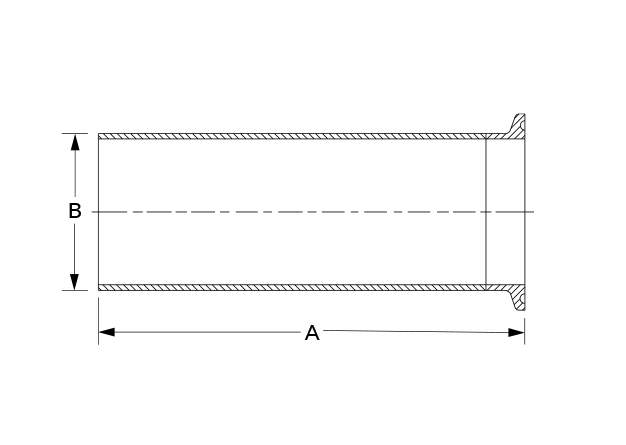

Tri-Clamp Collared SpoolFVSP-Size-MP-Material
| 316L Material Part # | Size OD (in) | A (in) | B (in) | Wall Thickness (in) |
|---|---|---|---|---|
| FVSP-0.5-MP-316L | ½ | 5.50 | 0.50 | 0.065 |
| FVSP-0.75-MP-316L | ¾ | 5.50 | 0.75 | 0.065 |
| FVSP-1-MP-316L | 1 | 5.50 | 1.00 | 0.065 |
| FVSP-1.5-MP-316L | 1½ | 5.50 | 1.50 | 0.065 |
| FVSP-2-MP-316L | 2 | 5.50 | 2.00 | 0.065 |
| FVSP-2.5-MP-316L | 2½ | 5.50 | 2.50 | 0.065 |
| FVSP-3-MP-316L | 3 | 5.50 | 3.00 | 0.065 |
| FVSP-4-MP-316L | 4 | 5.50 | 4.00 | 0.083 |

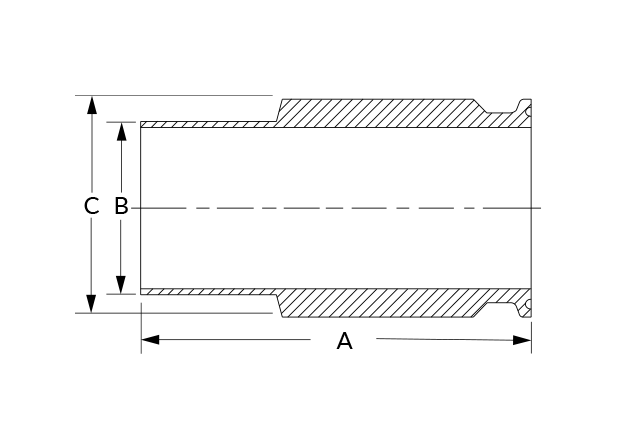

Tri-Clamp Collared SpoolFVSPC-Size-MP-Material-Finish
| 316L Material Part # (PL finish) | Size OD (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| FVSPC-0.5-MP-316L-PL | ½ | 4.50 | 0.50 | 0.984 |
| FVSPC-0.75-MP-316L-PL | ¾ | 4.50 | 0.75 | 0.954 |
| FVSPC-1-MP-316L-PL | 1 | 4.50 | 1.00 | 1.984 |
| FVSPC-1.5-MP-316L-PL | 1½ | 4.50 | 1.50 | 1.985 |
| FVSPC-2-MP-316L-PL | 2 | 4.50 | 2.00 | 2.516 |
| FVSPC-2.5-MP-316L-PL | 2½ | 4.50 | 2.50 | 3.047 |
| FVSPC-3-MP-316L-PL | 3 | 4.50 | 3.00 | 3.579 |
| FVSPC-4-MP-316L-PL | 4 | 4.50 | 4.00 | 4.682 |

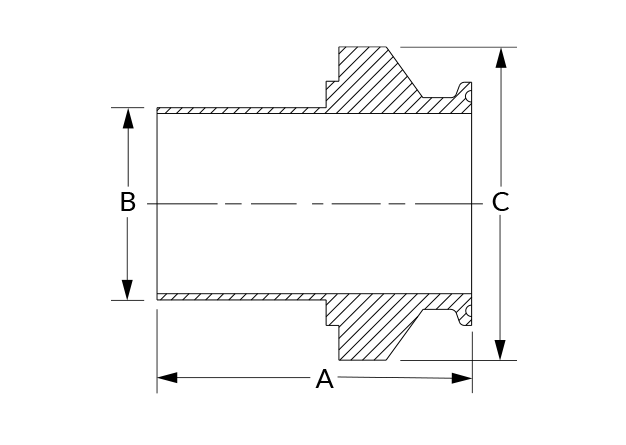

Tri-Clamp with Step Collared SpoolFVSPCH-S-Size-MP-Material-Finish
| 316L Material Part # (PL finish) | Size OD (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| FVSPCH-S-0.5-MP-316L-PL | ½ | 3.25 | 0.50 | 1.625 |
| FVSPCH-S-0.75-MP-316L-PL | ¾ | 3.25 | 0.75 | 1.625 |
| FVSPCH-S-1-MP-316L-PL | 1 | 3.25 | 1.00 | 3.125 |
| FVSPCH-S-1.5-MP-316L-PL | 1½ | 3.25 | 1.50 | 3.125 |
| FVSPCH-S-2-MP-316L-PL | 2 | 3.25 | 2.00 | 3.250 |
| FVSPCH-S-2.5-MP-316L-PL | 2½ | 3.25 | 2.50 | 3.750 |
| FVSPCH-S-3-MP-316L-PL | 3 | 3.25 | 3.00 | 4.375 |
| FVSPCH-S-4-MP-316L-PL | 4 | 3.25 | 4.00 | 5.500 |

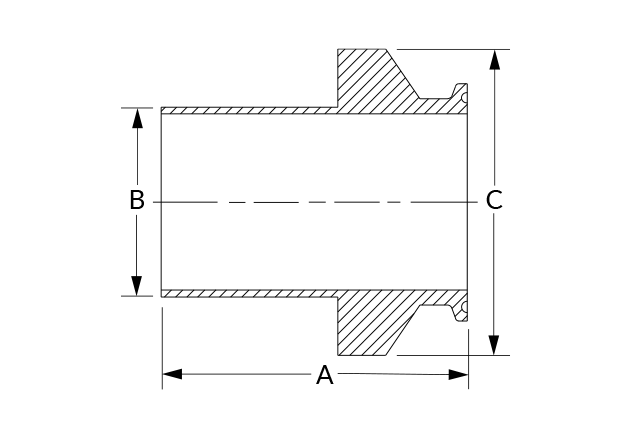

Tri-Clamp No Step Collared SpoolFVSPCH-N-Size-MP-Material-Finish
| 316L Material Part # (PL finish) | Size OD (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| FVSPCH-N-0.5-MP-316L-PL | ½ | 3.25 | 0.50 | 1.625 |
| FVSPCH-N-0.75-MP-316L-PL | ¾ | 3.25 | 0.75 | 1.625 |
| FVSPCH-N-1-MP-316L-PL | 1 | 3.25 | 1.00 | 3.125 |
| FVSPCH-N-1.5-MP-316L-PL | 1½ | 3.25 | 1.50 | 3.125 |
| FVSPCH-N-2-MP-316L-PL | 2 | 3.25 | 2.00 | 3.250 |
| FVSPCH-N-2.5-MP-316L-PL | 2½ | 3.25 | 2.50 | 3.750 |
| FVSPCH-N-3-MP-316L-PL | 3 | 3.25 | 3.00 | 4.375 |
| FVSPCH-N-4-MP-316L-PL | 4 | 3.25 | 4.00 | 5.500 |
Butt Weld x Butt Weld

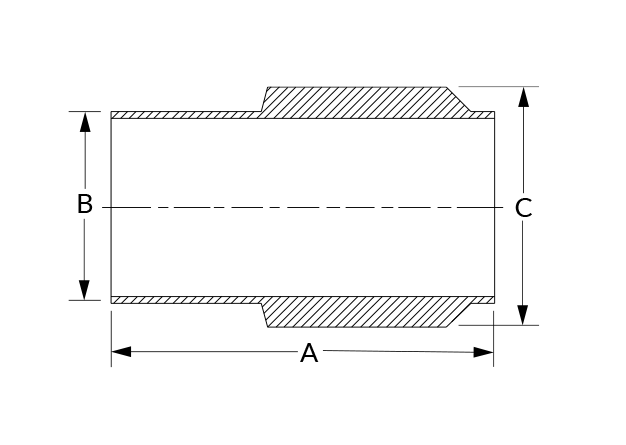

Butt Weld Collared SpoolFVSPC-Size-BW-Material-Finish
| 316L Material Part # (PL finish) | Size OD (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| FVSPC-0.5-BW-316L-PL | ½ | 4.00 | 0.50 | 0.984 |
| FVSPC-0.75-BW-316L-PL | ¾ | 4.00 | 0.75 | 0.984 |
| FVSPC-1-BW-316L-PL | 1 | 4.00 | 1.00 | 1.984 |
| FVSPC-1.5-BW-316L-PL | 1½ | 4.00 | 1.50 | 1.984 |
| FVSPC-2-BW-316L-PL | 2 | 4.00 | 2.00 | 2.516 |
| FVSPC-2.5-BW-316L-PL | 2½ | 4.00 | 2.50 | 3.047 |
| FVSPC-3-BW-316L-PL | 3 | 4.00 | 3.00 | 3.579 |
| FVSPC-4-BW-316L-PL | 4 | 4.00 | 4.00 | 4.682 |

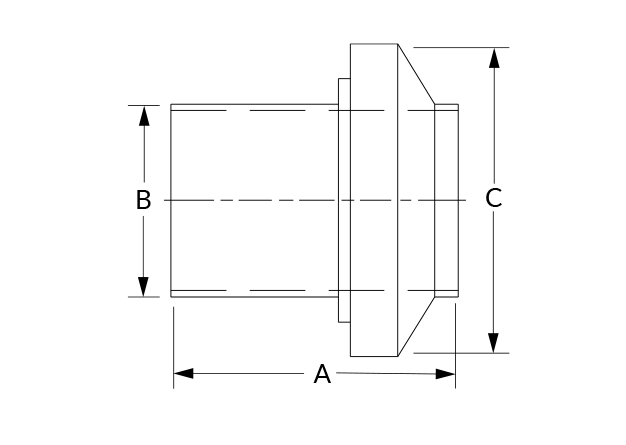

Butt Weld with Step Collared SpoolFVSPCH-S-Size-BW-Material-Finish
| 316L Material Part # (PL finish) | Size OD (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| FVSPCH-S-0.5-BW-316L-PL | ½ | 3.00 | 0.50 | 1.625 |
| FVSPCH-S-0.75-BW-316L-PL | ¾ | 3.00 | 0.75 | 1.625 |
| FVSPCH-S-1-BW-316L-PL | 1 | 3.00 | 1.00 | 3.125 |
| FVSPCH-S-1.5-BW-316L-PL | 1½ | 3.00 | 1.50 | 3.125 |
| FVSPCH-S-2-BW-316L-PL | 2 | 3.00 | 2.00 | 3.250 |
| FVSPCH-S-2.5-BW-316L-PL | 2½ | 3.00 | 2.50 | 3.750 |
| FVSPCH-S-3-BW-316L-PL | 3 | 3.25 | 3.00 | 4.375 |
| FVSPCH-S-4-BW-316L-PL | 4 | 3.50 | 4.00 | 5.500 |

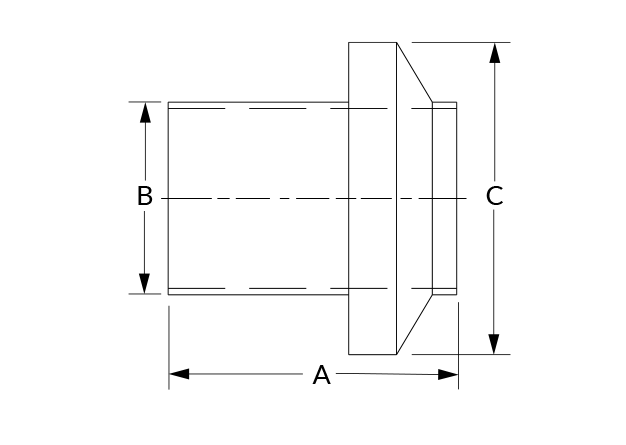

Butt Weld No Step Collared SpoolFVSPCH-N-Size-BW-Material-Finish
| 316L Material Part # (PL finish) | Size OD (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| FVSPCH-N-0.5-BW-316L-PL | ½ | 3.00 | 0.50 | 1.625 |
| FVSPCH-N-0.75-BW-316L-PL | ¾ | 3.00 | 0.75 | 1.625 |
| FVSPCH-N-1-BW-316L-PL | 1 | 3.00 | 1.00 | 3.125 |
| FVSPCH-N-1.5-BW-316L-PL | 1½ | 3.00 | 1.50 | 3.125 |
| FVSPCH-N-2-BW-316L-PL | 2 | 3.00 | 2.00 | 3.250 |
| FVSPCH-N-2.5-BW-316L-PL | 2½ | 3.00 | 2.50 | 3.750 |
| FVSPCH-N-3-BW-316L-PL | 3 | 3.25 | 3.00 | 4.375 |
| FVSPCH-N-4-BW-316L-PL | 4 | 3.50 | 4.00 | 5.500 |
