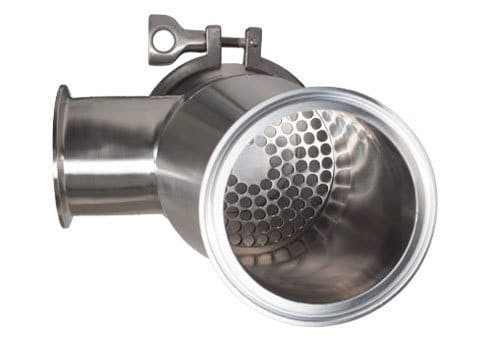

TrueClean® Magnetic Strainer
The TrueClean® Magnetic Strainer is a perfect fit when it comes to protecting expensive pumping and heat exchange equipment from unwanted foreign material. The design features a strainer plate that is available in several configurations to catch large items. It also features a magnetized stem for removal of light, ferrous material from your product.
The TrueClean Magnetic Strainer's plate is available in traditional perforations, as well as elongated slots, making it a versatile solution for foreign material straining. It is a cost-effective solution for the removal of unwanted particulates from process fluid, while protecting your valuable equipment.
The TrueClean Magnetic Strainer is available in sizes 1.5 through 4 inch, with a variety of perforation sizes. The plate can be provided with either round or elongated slots.
The TrueClean Magnetic Strainer is available in the following sizes: 1 1/2, 2, 2 1/2, 3, and 4 inch
TrueClean® brand equipment delivers unique value in the sanitary processing industry by solving everyday problems.
Application
The TrueClean Magnetic Strainer is ideally used in applications where there is the opportunity to introduce unwanted foreign material that may lead to damage of your pumping and heat exchange equipment. One typical application is bulk unloading of tanker trucks.
Standard Design
The TrueClean Magnetic Strainer features 316L stainless steel for all product contact surfaces. The elastomer is available in EPDM (std.), Viton, or Teflon.
Specifications
| Material | 316L* |
| Elastomer | EPDM (standard), Viton, Teflon |
| Finish | 32 Ra ID/OD |
| Connection | Standard pressure Tri-Clamp® |
| Sizes (in) | 1½, 2, 2½, 3, 4 |
| Strainer Sizes (in) | ⅛, ¼, ⅜, ½, ⅝ |
| Strainer Shapes | Circular (standard), elongated slots |
*AL-6XN® alloy available
Dimensional Data
| Size | A (in) | B (in) | C (in) | D (in) |
|---|---|---|---|---|
| 1½ | 18 | 9 ⅞ | 4⅜ | 5⅜ |
| 2 | 14⅛ | 7⅛ | 4⅛ | 5⅜ |
| 2½ | 17⅛ | 10⅝ | 5⅛ | 5⅜ |
| 3 | 15⅜ | 8⅝ | 4⅞ | 5⅜ |
| 4 | 11½ | 4¾ | 4¾ | 5⅜ |
