Compression Tube Fittings
SUPERLOK Tube Fittings are manufactured with strict material control, precision engineering, and advanced machining technology. Designed for easy tightening, they ensure a secure, leak-free connection even under shock, vibration, and temperature fluctuations.
Using SUPERLOK fittings enhances productivity and reduces costs for end users. Their industry-leading interior surface finish minimizes particle entrapment, lowers the risk of contamination, and optimizes fluid and gas flow.
Models
- Adapters
- Unions
-
Connectors
- SPC - Compression Tube
- SRPC - Compression Tube Reducing
- SFC - Female NPT x Compression Tube
- SBFC - Female NPT x Compression Tube Bulkhead
- SMC - Male NPT x Compression Tube
- SBMC - Male NPT x Compression Tube Bulkhead
- SOPC - Male NPT x Compression Tube O-Seal
- SPWC - Male Pipe Weld x Compression Tube
- SSMC - Male SAE x Compression Tube
- SOSC - Male SAE x Compression Tube O-Seal
- SSWC - Socket Weld Tube x Compression Tube
- Elbows
- Caps and Plugs
- Reducers
- Tees & Crosses
Compression Tube Fittings
Adapters

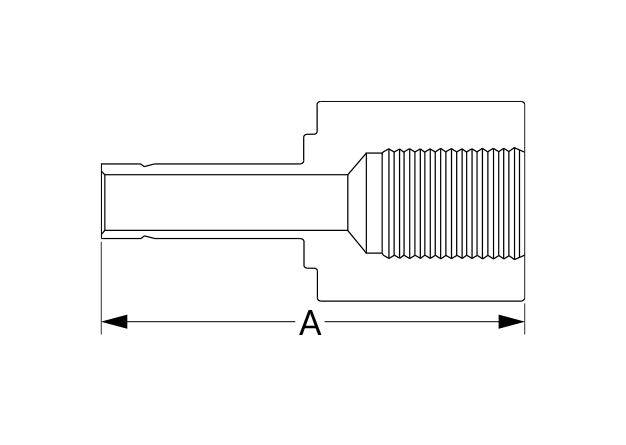

Female NPT x Tube Stub (SFA)
| Part # | Tube Size | NPT | A (in) |
|---|---|---|---|
| SFA-2-2N | 1/8 | 1/8 | 1.24 |
| SFA-2-4N | 1/8 | ¼ | 1.39 |
| SFA-3-2N | 3/16 | 1/8 | 1.26 |
| SFA-3-4N | 3/16 | ¼ | 1.41 |
| SFA-4-2N | ¼ | 1/8 | 1.30 |
| SFA-4-4N | ¼ | ¼ | 1.46 |
| SFA-4-6N | ¼ | 3/8 | 1.55 |
| SFA-4-8N | ¼ | ½ | 1.79 |
| SFA-5-2N | 5/16 | 1/8 | 1.35 |
| SFA-5-4N | 5/16 | ¼ | 1.48 |
| SFA-6-2N | 3/8 | 1/8 | 1.35 |
| SFA-6-4N | 3/8 | ¼ | 1.50 |
| SFA-6-6N | 3/8 | 3/8 | 1.59 |
| SFA-6-8N | 3/8 | ½ | 1.84 |
| SFA-8-4N | ½ | ¼ | 1.71 |
| SFA-8-6N | ½ | 3/8 | 1.79 |
| SFA-8-8N | ½ | ½ | 2.04 |
| SFA-8-12N | ½ | ¾ | 2.08 |
| SFA-10-6N | 5/8 | 3/8 | 1.90 |
| SFA-10-8N | 5/8 | ½ | 2.09 |
| SFA-12-8N | ¾ | ½ | 2.08 |
| SFA-12-12N | ¾ | ¾ | 2.16 |
| SFA-12-16N | ¾ | 1 | 2.30 |
| SFA-14-12N | 7/8 | ¾ | 2.25 |
| SFA-16-12N | 1 | ¾ | 2.39 |
| SFA-16-16N | 1 | 1 | 2.53 |

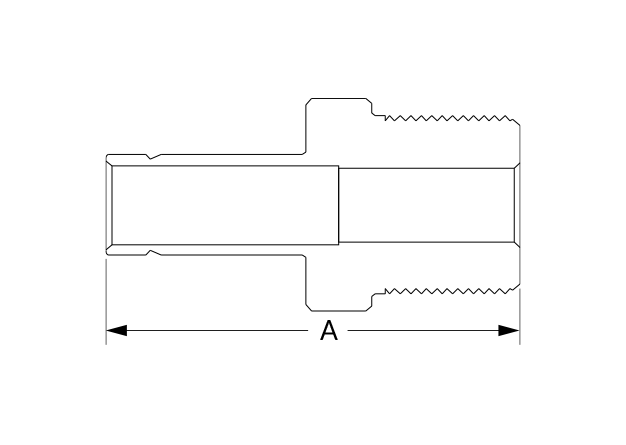

Male NPT x Tube Stub (SMA)
| Part # | Tube Size | NPT | A (in) |
|---|---|---|---|
| SMA-2-2N | 1/8 | 1/8 | 1.16 |
| SMA-2-4N | 1/8 | ¼ | 1.37 |
| SMA-3-2N | 3/16 | 1/8 | 1.19 |
| SMA-3-4N | 3/16 | 1/4 | 1.40 |
| SMA-4-2N | 1/4 | 1/8 | 1.25 |
| SMA-4-4N | 1/4 | 1/4 | 1.46 |
| SMA-4-6N | 1/4 | 3/8 | 1.49 |
| SMA-4-8N | 1/4 | 1/2 | 1.71 |
| SMA-5-2N | 5/16 | 1/8 | 1.29 |
| SMA-5-4N | 5/16 | 1/4 | 1.50 |
| SMA-6-2N | 3/8 | 1/8 | 1.32 |
| SMA-6-4N | 3/8 | 1/4 | 1.53 |
| SMA-6-6N | 3/8 | 3/8 | 1.56 |
| SMA-6-8N | 3/8 | 1/2 | 1.78 |
| SMA-8-4N | 1/2 | 1/4 | 1.75 |
| SMA-8-6N | 1/2 | 3/8 | 1.78 |
| SMA-8-8N | 1/2 | 1/2 | 2.00 |
| SMA-10-6N | 5/8 | 3/8 | 1.87 |
| SMA-10-8N | 5/8 | 1/2 | 2.06 |
| SMA-10-12N | 5/8 | 3/4 | 2.06 |
| SMA-12-8N | 3/4 | 1/2 | 2.06 |
| SMA-12-12N | 3/4 | 3/4 | 2.06 |
| SMA-12-16N | 3/4 | 1 | 2.28 |
| SMA-14-12N | 7/8 | 3/4 | 2.14 |
| SMA-16-12N | 1 | 3/4 | 2.31 |
| SMA-16-16N | 1 | 1 | 2.60 |
Tri-Clamp x Compression Tube Adapters (31-14CA / SSFA)
| CSI Part # | Part # | Clamp Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| 31-14CA-0.5X0.25-316 | SSFA-4-8SA | 0.50 | 1.57 | 0.61 | 0.25 |
| 31-14CA-0.75X0.25-316 | SSFA-4-12SA | 0.75 | 1.57 | 0.61 | 0.25 |
| 31-14CA-1X0.25-316 | SSFA-4-16SA | 1.00 | 1.57 | 0.61 | 0.25 |
| 31-14CA-1.5X0.25-316 | SSFA-4-24SA | 1.50 | 1.57 | 0.61 | 0.25 |
| 31-14CA-0.5X0.375-316 | SSFA-6-8SA | 0.50 | 1.63 | 0.67 | 0.375 |
| 31-14CA-0.75X0.375-316 | SSFA-6-12SA | 0.75 | 1.63 | 0.67 | 0.375 |
| 31-14CA-1X0.375-316 | SSFA-6-16SA | 1.00 | 1.63 | 0.67 | 0.375 |
| 31-14CA-1.5X0.375-316 | SSFA-6-24SA | 1.50 | 1.63 | 0.67 | 0.375 |
| 31-14CA-0.5X0.5-316 | SSFA-8-8SA | 0.50 | 1.74 | 0.90 | 0.50 |
| 31-14CA-0.75X0.5-316 | SSFA-8-12SA | 0.75 | 1.74 | 0.90 | 0.50 |
| 31-14CA-1X0.5-316 | SSFA-8-16SA | 1.00 | 1.74 | 0.90 | 0.50 |
| 31-14CA-1.5X0.5-316 | SSFA-8-24SA | 1.50 | 1.74 | 0.90 | 0.50 |
| 31-14CA-0.75X0.75-316 | SSFA-12-12SA | 0.75 | 1.75 | 0.97 | 0.75 |
| 31-14CA-1X0.75-316 | SSFA-12-16SA | 1.00 | 1.74 | 0.97 | 0.75 |
| 31-14CA-1X1-316 | SSFA-16-16SA | 1.00 | 1.92 | 1.24 | 1.00 |
| 31-14CA-1.5X1-316 | SSFA-16-24SA | 1.50 | 1.92 | 1.24 | 1.00 |
Caps and Plugs

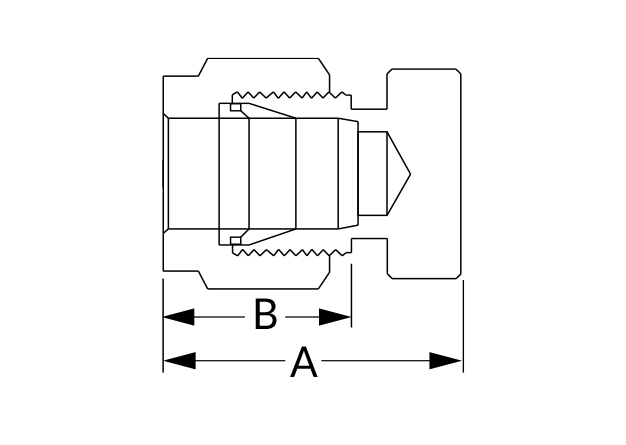

Compression Tube Cap (SC)
| Part # | Tube Size (in) | A (in) | B (in) |
|---|---|---|---|
| SC-1 | 1/16 | 0.59 | 0.34 |
| SC-2 | 1/8 | 0.79 | 0.50 |
| SC-3 | 3/16 | 0.84 | 0.54 |
| SC-4 | 1/4 | 0.92 | 0.60 |
| SC-6 | 3/8 | 1.01 | 0.66 |
| SC-8 | 1/2 | 1.15 | 0.90 |
| SC-10 | 5/8 | 1.18 | 0.96 |
| SC-12 | 3/4 | 1.32 | 0.96 |
| SC-14 | 7/8 | 1.34 | 1.02 |
| SC-16 | 1 | 1.51 | 1.23 |

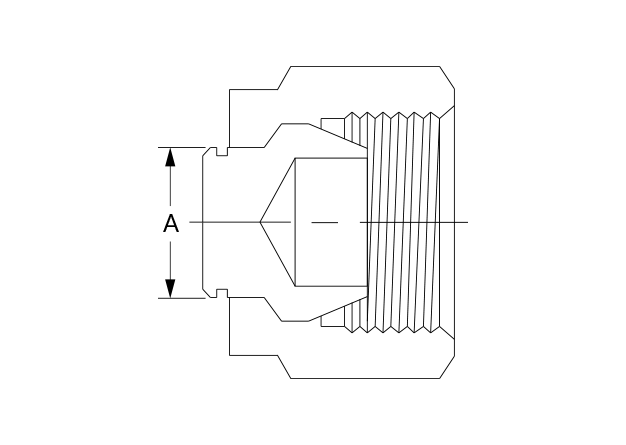

Compression Tube Plug (SP)
| Part # | Tube Size (in) | A (in) |
|---|---|---|
| SP-1 | 1/16 | 0.06 |
| SP-2 | 1/8 | 0.13 |
| SP-3 | 3/16 | 0.19 |
| SP-4 | 1/4 | 0.25 |
| SP-6 | 3/8 | 0.78 |
| SP-8 | 1/2 | 0.50 |
| SP-10 | 5/8 | 0.63 |
| SP-12 | 3/4 | 0.75 |
| SP-14 | 7/8 | 0.88 |
| SP-16 | 1 | 1.00 |
| SP-24 | 1½ | 1.50 |
Connectors
Compression Tube Port Connector (SPC)
| Part # | Tube Size (in) | A (in) | B (in) |
|---|---|---|---|
| SPC-2 | 1/8 | 0.88 | 0.25 |
| SPC-4 | 1/4 | 0.99 | 0.37 |
| SPC-6 | 3/8 | 1.05 | 0.50 |
| SPC-8 | 1/2 | 1.41 | 0.62 |
| SPC-12 | 3/4 | 1.50 | 0.87 |
| SPC-16 | 1 | 1.89 | 1.12 |
Compression Tube Reducing Port Connector (SRPC)
| Part # | Tube Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| SRPC-2-1 | 1/8 X 1/16 | 0.24 | 0.03 | 0.68 |
| SRPC-4-1 | 1/4 X 1/16 | 0.37 | 0.03 | 0.71 |
| SRPC-4-2 | 1/4 X 1/8 | 0.37 | 0.08 | 0.89 |
| SRPC-6-2 | 3/8 X 1/8 | 0.50 | 0.08 | 0.91 |
| SRPC-6-4 | 3/8 X 1/4 | 0.50 | 0.17 | 0.98 |
| SRPC-8-4 | 1/2 X 1/4 | 0.62 | 0.17 | 1.15 |
| SRPC-8-6 | 1/2 X 3/8 | 0.62 | 0.27 | 1.20 |
| SRPC-12-8 | 3/4 X 1/2 | 0.37 | 0.37 | 1.49 |
| SRPC-16-8 | 1 X 1/2 | 1.12 | 0.37 | 1.68 |
| SRPC-16-12 | 1 X 3/4 | 1.12 | 0.58 | 1.71 |

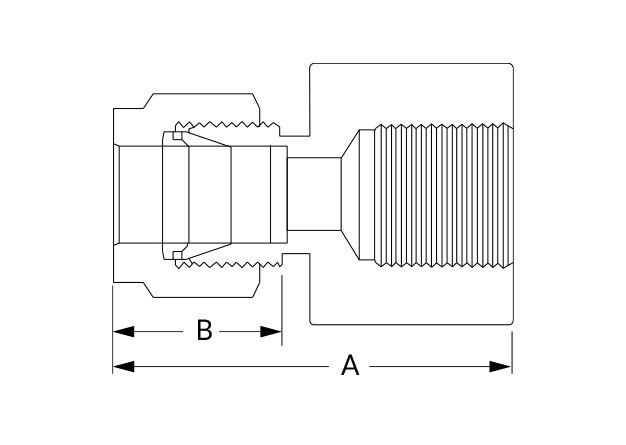

Female NPT x Compression Tube Connectors (SFC)
| Part # | Tube Size (in) | NPT (in) | A (in) | B (in) |
|---|---|---|---|---|
| SFC-2-2N | 1/8 | 1/8 | 1.13 | 0.50 |
| SFC-2-4N | 1/8 | 1/4 | 1.32 | 0.50 |
| SFC-3-2N | 3/16 | 1/8 | 1.17 | 0.54 |
| SFC-4-2N | 1/4 | 1/8 | 1.23 | 0.60 |
| SFC-4-4N | 1/4 | 1/4 | 1.41 | 0.60 |
| SFC-4-6N | 1/4 | 3/8 | 1.48 | 0.60 |
| SFC-4-8N | 1/4 | 1/2 | 1.67 | 0.60 |
| SFC-5-2N | 5/16 | 1/8 | 1.26 | 0.64 |
| SFC-5-4N | 5/16 | 1/4 | 1.45 | 0.64 |
| SFC-6-2N | 3/8 | 1/8 | 1.29 | 0.66 |
| SFC-6-4N | 3/8 | 1/4 | 1.48 | 0.66 |
| SFC-6-6N | 3/8 | 3/8 | 1.54 | 0.66 |
| SFC-6-8N | 3/8 | 1/2 | 1.73 | 0.66 |
| SFC-6-12N | 3/8 | 3/4 | 1.88 | 0.66 |
| SFC-8-4N | 1/2 | 1/4 | 1.59 | 0.90 |
| SFC-8-6N | 1/2 | 3/8 | 1.65 | 0.90 |
| SFC-8-8N | 1/2 | 1/2 | 1.84 | 0.90 |
| SFC-8-12N | 1/2 | 3/4 | 1.90 | 0.90 |
| SFC-10-6N | 5/8 | 3/8 | 1.65 | 0.96 |
| SFC-10-8N | 5/8 | 1/2 | 1.84 | 0.96 |
| SFC-12-8N | 3/4 | 1/2 | 1.84 | 0.96 |
| SFC-12-12N | 3/4 | 3/4 | 1.90 | 0.96 |
| SFC-14-12N | 7/8 | 3/4 | 1.96 | 1.02 |
| SFC-16-12N | 1 | 3/4 | 2.10 | 1.23 |
| SFC-16-16N | 1 | 1 | 2.45 | 1.23 |

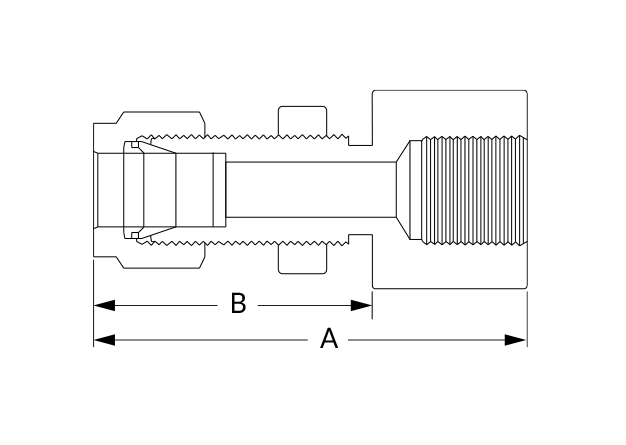

Female NPT X Compression Tube Bulkhead Connector (SBFC)
| Part # | Tube Size (in) | NPT Size (in) | A (in) | B (in) |
|---|---|---|---|---|
| SBFC-2-2N | 1/8 | 1/8 | 1.76 | 1.23 |
| SBFC-4-2N | 1/4 | 1/8 | 1.85 | 1.32 |
| SBFC-4-4N | 1/4 | 1/4 | 2.04 | 1.32 |
| SBFC-6-4N | 3/8 | 1/4 | 2.17 | 1.45 |
| SBFC-8-6N | 1/2 | 3/8 | 2.43 | 1.65 |
| SBFC-8-8N | 1/2 | 1/2 | 2.62 | 1.65 |
| SBFC-12-12N | 3/4 | 3/4 | 2.89 | 1.87 |

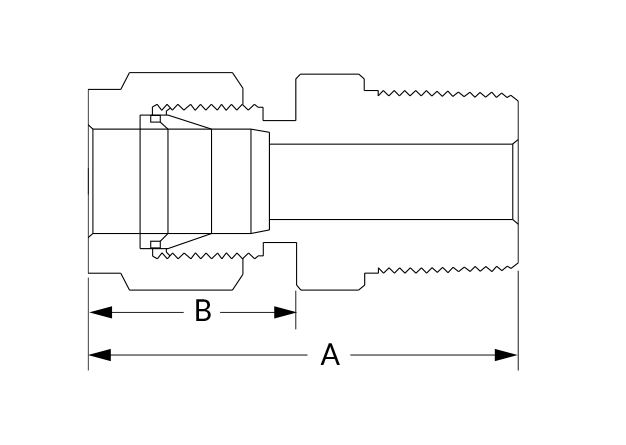

Male NPT X Compression Tube Connector (SMC)
| Part # | Tube Size (in) | NPT Size (in) | A (in) | B (in) |
|---|---|---|---|---|
| SMC-1-1N | 1/16 | 1/16 | 0.94 | 0.43 |
| SMC-1-2N | 1/16 | 1/8 | 1.03 | 0.43 |
| SMC-2-2N | 1/8 | 1/8 | 1.20 | 0.60 |
| SMC-2-6N | 1/8 | 3/8 | 1.41 | 0.60 |
| SMC-2-8N | 1/8 | 1/2 | 1.66 | 0.60 |
| SMC-3-2N | 3/16 | 1/8 | 1.23 | 0.63 |
| SMC-3-4N | 3/16 | 1/4 | 1.43 | 0.63 |
| SMC-4-2N | 1/4 | 1/8 | 1.29 | 0.70 |
| SMC-4-4N | 1/4 | 1/4 | 1.49 | 0.70 |
| SMC-4-8N | 1/4 | 1/2 | 1.76 | 0.70 |
| SMC-4-12N | 1/4 | 3/4 | 1.82 | 0.70 |
| SMC-5-2N | 5/16 | 1/8 | 1.34 | 0.73 |
| SMC-5-4N | 5/16 | 1/4 | 1.52 | 0.73 |
| SMC-5-6N | 5/16 | 3/8 | 1.54 | 0.73 |
| SMC-6-2N | 3/8 | 1/8 | 1.39 | 0.76 |
| SMC-6-4N | 3/8 | 1/4 | 1.57 | 0.76 |
| SMC-6-6N | 3/8 | 3/8 | 1.57 | 0.76 |
| SMC-6-8N | 3/8 | 1/2 | 1.82 | 0.76 |
| SMC-6-12N | 3/8 | 3/4 | 1.88 | 0.76 |
| SMC-8-2N | 1/2 | 1/8 | 1.53 | 0.86 |
| SMC-8-4N | 1/2 | 1/4 | 1.71 | 0.86 |
| SMC-8-6N | 1/2 | 3/8 | 1.71 | 0.86 |
| SMC-8-8N | 1/2 | 1/2 | 1.93 | 0.86 |
| SMC-8-12N | 1/2 | 3/4 | 1.99 | 0.86 |
| SMC-8-16N | 1/2 | 1 | 2.25 | 0.86 |
| SMC-10-6N | 5/8 | 3/8 | 1.74 | 0.86 |
| SMC-10-8N | 5/8 | 1/2 | 1.93 | 0.86 |
| SMC-10-12N | 5/8 | 3/4 | 1.99 | 0.86 |
| SMC-12-8N | 3/4 | 1/2 | 1.99 | 0.86 |
| SMC-12-16N | 3/4 | 1 | 2.25 | 0.86 |
| SMC-14-12N | 7/8 | 3/4 | 1.99 | 0.86 |
| SMC-14-16N | 7/8 | 1 | 2.25 | 0.86 |
| SMC-16-8N | 1 | 1/2 | 2.26 | 1.04 |
| SMC-16-12N | 1 | 3/4 | 2.26 | 1.04 |
| SMC-16-16N | 1 | 1 | 2.45 | 1.04 |
| SMC-20-16N | 1-1/4 | 1 | 3.04 | 1.53 |
| SMC-20-20N | 1-1/4 | 1-1/4 | 3.04 | 1.53 |
| SMC-24-24N | 1-1/2 | 1-1/2 | 3.50 | 1.66 |
| SMC-32-32N | 2 | 2 | 4.47 | 2.47 |

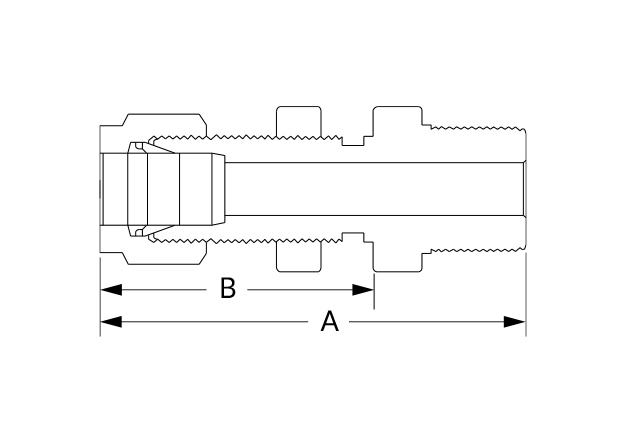

Male NPT X Compression Tube Bulkhead Connector (SBMC)
| Part # | Tube Size (in) | NPT Size (in) | A (in) | B (in) |
|---|---|---|---|---|
| SBMC-2-2N | 1/8 | 1/8 | 1.83 | 1.23 |
| SBMC-4-2N | 1/4 | 1/8 | 1.95 | 1.32 |
| SBMC-4-4N | 1/4 | 1/4 | 2.13 | 1.32 |
| SBMC-6-4N | 3/8 | 1/4 | 2.26 | 1.45 |
| SBMC-6-6N | 3/8 | 3/8 | 2.26 | 1.45 |
| SBMC-6-8N | 3/8 | 1/2 | 2.51 | 1.45 |
| SBMC-8-6N | 1/2 | 3/8 | 2.49 | 1.65 |
| SBMC-8-8N | 1/2 | 1/2 | 2.71 | 1.65 |
| SBMC-12-12N | 3/4 | 3/4 | 3.00 | 1.87 |
| SBMC-16-16N | 1 | 1 | 3.67 | 2.26 |
Male NPT X Compression Tube O-Seal Connector (SOPC)
| Part # | Tube Size (in) | NPT Size (in) | A (in) | B (in) |
|---|---|---|---|---|
| SOPC-2-2N | 1/8 | 1/8 | 0.60 | 1.29 |
| SOPC-4-2N | 1/4 | 1/8 | 0.70 | 1.38 |
| SOPC-4-4N | 1/4 | 1/4 | 0.70 | 1.51 |
| SOPC-6-4N | 3/8 | 1/4 | 0.76 | 1.57 |
| SOPC-6-6N | 3/8 | 3/8 | 0.76 | 1.63 |
| SOPC-6-8N | 3/8 | 1/2 | 0.76 | 1.85 |
| SOPC-8-8N | 1/2 | 1/2 | 0.86 | 1.96 |
Male Pipe Weld X Compression Tube Connector (SPWC)
| Part # | Tube Size (in) | Male Pipe Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SPWC-2-2P | 1/8 | 1/8 | 0.94 | 0.41 | 1.20 |
| SPWC-3-2P | 3/16 | 1/8 | 0.97 | 0.41 | 1.23 |
| SPWC-4-2P | 1/4 | 1/8 | 1.00 | 0.41 | 1.29 |
| SPWC-4-4P | 1/4 | 1/4 | 1.20 | 0.54 | 1.49 |
| SPWC-5-2P | 5/16 | 1/8 | 1.05 | 0.41 | 1.34 |
| SPWC-5-4P | 5/16 | 1/4 | 1.23 | 0.54 | 1.52 |
| SPWC-6-4P | 3/8 | 1/4 | 1.28 | 0.54 | 1.57 |
| SPWC-6-6P | 3/8 | 3/8 | 1.28 | 0.67 | 1.57 |
| SPWC-6-8P | 3/8 | 1/2 | 1.53 | 0.84 | 1.82 |
| SPWC-8-6P | 1/2 | 3/8 | 1.31 | 0.67 | 1.71 |
| SPWC-8-8P | 1/2 | 1/2 | 1.53 | 0.84 | 1.93 |
| SPWC-8-12P | 1/2 | 3/4 | 1.59 | 1.05 | 1.99 |
| SPWC-10-8P | 5/8 | 1/2 | 1.53 | 0.84 | 1.93 |
| SPWC-12-12P | 3/4 | 3/4 | 1.59 | 1.05 | 1.99 |
| SPWC-16-16P | 1 | 1 | 1.97 | 1.31 | 2.45 |
Male SAE X Compression Tube Connector (SSMC)
| Part # | Tube Size (in) | Male SAE Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SSMC-2-2U | 1/8 | 1/8 | 0.92 | 0.09 | 1.18 |
| SSMC-4-4U | 1/4 | 1/4 | 1.05 | 0.19 | 1.34 |
| SSMC-4-6U | 1/4 | 5/16 | 1.11 | 0.19 | 1.40 |
| SSMC-4-8U | 1/4 | 1/2 | 1.19 | 0.19 | 1.48 |
| SSMC-4-10U | 1/4 | 5/8 | 1.31 | 0.19 | 1.60 |
| SSMC-5-5U | 5/16 | 5/16 | 1.08 | 0.25 | 1.37 |
| SSMC-6-4U | 3/8 | 1/4 | 1.11 | 0.20 | 1.40 |
| SSMC-6-6U | 3/8 | 3/8 | 1.17 | 0.28 | 1.46 |
| SSMC-6-8U | 3/8 | 1/2 | 1.25 | 0.28 | 1.54 |
| SSMC-6-10U | 3/8 | 5/8 | 1.37 | 0.28 | 2.01 |
| SSMC-8-6U | 1/2 | 3/8 | 1.14 | 0.28 | 1.54 |
| SSMC-8-8U | 1/2 | 1/2 | 1.25 | 0.41 | 1.65 |
| SSMC-8-10U | 1/2 | 5/8 | 1.37 | 0.41 | 1.77 |
| SSMC-8-12U | 1/2 | 3/4 | 1.53 | 0.41 | 1.93 |
| SSMC-10-8U | 5/8 | 1/2 | 1.25 | 0.42 | 1.65 |
| SSMC-10-10U | 5/8 | 5/8 | 1.38 | 0.50 | 1.78 |
| SSMC-12-8U | 3/4 | 1/2 | 1.41 | 0.42 | 1.81 |
| SSMC-12-12U | 3/4 | 3/4 | 1.53 | 0.62 | 1.93 |
| SSMC-14-14U | 5/8 | 5/8 | 1.53 | 0.72 | 1.93 |
| SSMC-16-12U | 1 | 3/4 | 1.62 | 0.66 | 2.10 |
| SSMC-16-16U | 1 | 1 | 1.66 | 0.88 | 2.14 |

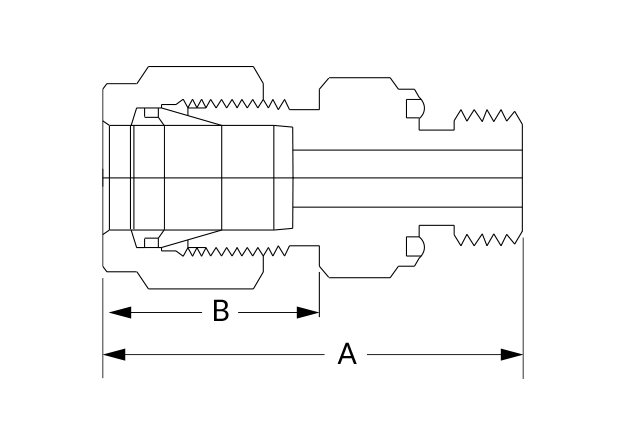

Male SAE X Compression Tube O-Seal Connector (SOSC)
| Part # | Tube Size (in) | Straight Thread (in) | A (in) | B (in) |
|---|---|---|---|---|
| SOSC-2-2U | 1/8 | 5/16-24 | 1.29 | 0.60 |
| SOSC-3-3U | 3/16 | 3/8-24 | 1.35 | 0.63 |
| SOSC-4-4U | 1/4 | 7/16-20 | 1.51 | 0.70 |
| SOSC-5-5U | 5/16 | 1/2-20 | 1.60 | 0.73 |
| SOSC-6-6U | 3/8 | 9/16-18 | 1.67 | 0.76 |
| SOSC-8-8U | 1/2 | 3/4-16 | 1.81 | 0.86 |
| SOSC-12-12U | 3/4 | 1-1/6-12 | 2.06 | 0.86 |
| SOSC-16-16U | 1 | 1-5/16-12 | 2.29 | 1.04 |
Socket Weld Tube X Compression Tube Connector (SSWC)
| Part # | Tube Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| SSWC-2 | 1/8 | 0.88 | 0.31 | 1.14 |
| SSWC-4 | 1/4 | 1.03 | 0.44 | 1.32 |
| SSWC-6 | 3/8 | 1.19 | 0.62 | 1.48 |
| SSWC-8 | 1/2 | 1.22 | 0.75 | 1.62 |
| SSWC-12 | 3/4 | 1.31 | 1.05 | 1.71 |
| SSWC-16 | 1 | 1.59 | 1.31 | 2.07 |
Elbows
90° Compression Tube Union Elbow (SUE)
| Part # | Tube Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| SUE-1 | 1/16 | 0.71 | 0.06 | 0.05 |
| SUE-2 | 1/8 | 0.88 | 0.13 | 0.09 |
| SUE-3 | 3/16 | 0.99 | 0.19 | 0.12 |
| SUE-4 | 1/4 | 1.08 | 0.25 | 0.19 |
| SUE-5 | 5/16 | 1.17 | 0.31 | 0.25 |
| SUE-6 | 3/8 | 1.20 | 0.38 | 0.28 |
| SUE-8 | 1/2 | 1.42 | 0.50 | 0.41 |
| SUE-10 | 5/8 | 1.50 | 0.63 | 0.50 |
| SUE-12 | 3/4 | 1.57 | 0.75 | 0.62 |
| SUE-14 | 7/8 | 1.75 | 0.88 | 0.72 |
| SUE-16 | 1 | 1.93 | 1.00 | 0.88 |
| SUE-20 | 1-1/4 | 2.62 | 1.25 | 1.09 |
| SUE-24 | 1-1/2 | 3.07 | 1.50 | 1.34 |
| SUE-32 | 2 | 4.22 | 2.00 | 1.81 |

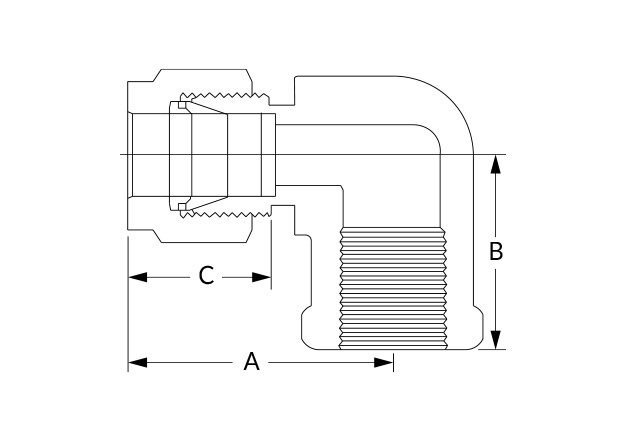

90° Female NPT X Compression Tube Elbow (SFE)
| Part # | Tube Size (in) | NPT (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SFE-2-2N | 1/8 | 1/8 | 0.97 | 0.92 | 0.50 |
| SFE-2-4N | 1/8 | 1/4 | 1.08 | 1.14 | 0.50 |
| SFE-3-2N | 3/16 | 1/8 | 1.00 | 0.92 | 0.54 |
| SFE-4-2N | 1/4 | 1/8 | 1.06 | 0.92 | 0.60 |
| SFE-4-4N | 1/4 | 1/4 | 1.17 | 1.14 | 0.60 |
| SFE-4-6N | 1/4 | 3/8 | 1.25 | 0.88 | 0.60 |
| SFE-4-8N | 1/4 | 1/2 | 1.36 | 1.46 | 0.60 |
| SFE-5-2N | 5/16 | 1/8 | 1.13 | 0.75 | 0.64 |
| SFE-5-4N | 5/16 | 1/4 | 1.20 | 1.14 | 0.64 |
| SFE-6-2N | 3/8 | 1/8 | 1.20 | 0.75 | 0.66 |
| SFE-6-4N | 3/8 | 1/4 | 1.23 | 1.14 | 0.66 |
| SFE-6-6N | 3/8 | 3/8 | 1.31 | 0.88 | 0.66 |
| SFE-6-8N | 3/8 | 1/2 | 1.42 | 1.46 | 0.66 |
| SFE-8-4N | 1/2 | 1/4 | 1.42 | 0.78 | 0.90 |
| SFE-8-6N | 1/2 | 3/8 | 1.42 | 0.88 | 0.90 |
| SFE-8-8N | 1/2 | 1/2 | 1.53 | 1.46 | 0.90 |
| SFE-10-6N | 5/8 | 3/8 | 1.50 | 0.88 | 0.96 |
| SFE-10-8N | 5/8 | 1/2 | 1.57 | 1.12 | 0.96 |
| SFE-12-8N | 3/4 | 1/2 | 1.57 | 1.12 | 0.96 |
| SFE-12-12N | 3/4 | 3/4 | 1.76 | 1.25 | 0.96 |
| SFE-14-12N | 7/8 | 3/4 | 1.76 | 1.25 | 1.02 |
| SFE-16-12N | 1 | 3/4 | 1.93 | 1.25 | 1.23 |
| SFE-16-16N | 1 | 1 | 2.11 | 1.50 | 1.23 |

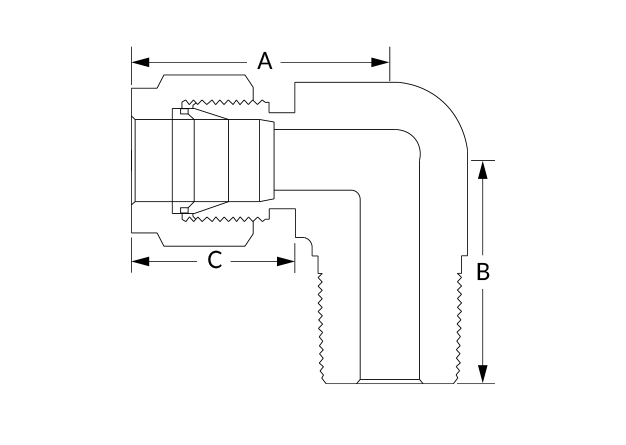

90° Male NPT X Compression Tube Elbow (SME)
| Part # | Tube Size (in) | NPT (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SME-2-2N | 1/8 | 1/8 | 0.96 | 0.74 | 0.60 |
| SME-2-4N | 1/8 | 1/4 | 0.96 | 0.92 | 0.60 |
| SME-3-2N | 3/16 | 1/8 | 1.00 | 0.74 | 0.63 |
| SME-3-4N | 3/16 | 1/4 | 1.00 | 0.92 | 0.63 |
| SME-4-2N | 1/4 | 1/8 | 1.06 | 0.74 | 0.70 |
| SME-4-4N | 1/4 | 1/4 | 1.06 | 0.92 | 0.70 |
| SME-4-6N | 1/4 | 3/8 | 1.17 | 1.03 | 0.70 |
| SME-4-8N | 1/4 | 1/2 | 1.25 | 1.30 | 0.70 |
| SME-5-2N | 5/16 | 1/8 | 1.13 | 0.78 | 0.73 |
| SME-5-4N | 5/16 | 1/4 | 1.13 | 0.96 | 0.73 |
| SME-5-6N | 5/16 | 3/8 | 1.20 | 1.03 | 0.73 |
| SME-6-2N | 3/8 | 1/8 | 1.20 | 0.82 | 0.76 |
| SME-6-4N | 3/8 | 1/4 | 1.20 | 1.00 | 0.76 |
| SME-6-6N | 3/8 | 3/8 | 1.23 | 1.03 | 0.76 |
| SME-6-8N | 3/8 | 1/2 | 1.31 | 1.30 | 0.76 |
| SME-6-12N | 3/8 | 3/4 | 1.46 | 1.45 | 0.76 |
| SME-8-4N | 1/2 | 1/4 | 1.42 | 1.11 | 0.86 |
| SME-8-6N | 1/2 | 3/8 | 1.42 | 1.11 | 0.86 |
| SME-8-8N | 1/2 | 1/2 | 1.42 | 1.30 | 0.86 |
| SME-8-12N | 1/2 | 3/4 | 1.57 | 1.06 | 0.86 |
| SME-10-6N | 5/8 | 3/8 | 1.50 | 1.19 | 0.86 |
| SME-10-8N | 5/8 | 1/2 | 1.50 | 1.38 | 0.86 |
| SME-10-12N | 5/8 | 3/4 | 1.57 | 1.45 | 0.86 |
| SME-12-8N | 3/4 | 1/2 | 1.57 | 1.45 | 0.86 |
| SME-12-12N | 3/4 | 3/4 | 1.57 | 1.45 | 0.86 |
| SME-14-12N | 7/8 | 3/4 | 1.76 | 1.64 | 0.86 |
| SME-16-12N | 1 | 3/4 | 1.93 | 1.64 | 1.04 |
| SME-16-16N | 1 | 1 | 1.93 | 1.83 | 1.04 |
| SME-20-20N | 1-1/4 | 1-1/4 | 2.62 | 1.88 | 1.53 |
| SME-24-24N | 1-1/2 | 1-1/2 | 3.07 | 2.38 | 1.78 |
| SME-32-32N | 2 | 2 | 4.22 | 2.78 | 2.47 |
90° Male Threaded X Compression Tube Positionable Elbow (SPME)
| Part # | Tube Size (in) | Male Thread (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SPME-4-4U | 1/4 | 7/16-20 | 1.12 | 1.12 | 0.65 |
| SPME-4-6U | 1/4 | 9/16-18 | 1.20 | 1.27 | 0.79 |
| SPME-5-5U | 5/16 | 1/2-20 | 1.19 | 1.16 | 0.72 |
| SPME-6-6U | 3/8 | 9/16-18 | 1.26 | 1.27 | 0.79 |
| SPME-6-8U | 3/8 | 3/4-16 | 1.37 | 1.49 | 1.01 |
| SPME-8-8U | 1/2 | 3/4-16 | 1.48 | 1.49 | 1.01 |
| SPME-10-10U | 5/8 | 7/8-14 | 1.56 | 1.71 | 1.16 |
| SPME-12-12U | 3/4 | 1-1/16-12 | 1.63 | 1.92 | 1.44 |
| SPME-14-14U | 7/8 | 3/16-12 | 1.70 | 1.99 | 1.59 |
| SPME-16-16U | 1 | 1-5/16-12 | 1.99 | 2.11 | 1.73 |
| SPME-20-20U | 1-1/4 | 1-5/8-12 | 2.67 | 2.29 | 2.16 |
| SPME-24-24U | 1-1/2 | 1-7/8-12 | 3.07 | 2.38 | 2.45 |
| SPME-32-32U | 2 | 2-1/2-12 | 4.22 | 2.82 | 3.16 |
90° Socket Weld X Compression Tube Elbow (SSWE)
| Part # | Tube Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| SSWE-4 | 1/4 | 1.06 | 0.77 | 0.50 |
| SSWE-6 | 3/8 | 1.20 | 0.91 | 0.62 |
| SSWE-8 | 1/2 | 1.42 | 1.02 | 0.81 |
| SSWE-12 | 3/4 | 1.57 | 1.17 | 1.06 |
| SSWE-16 | 1 | 1.93 | 1.45 | 1.38 |

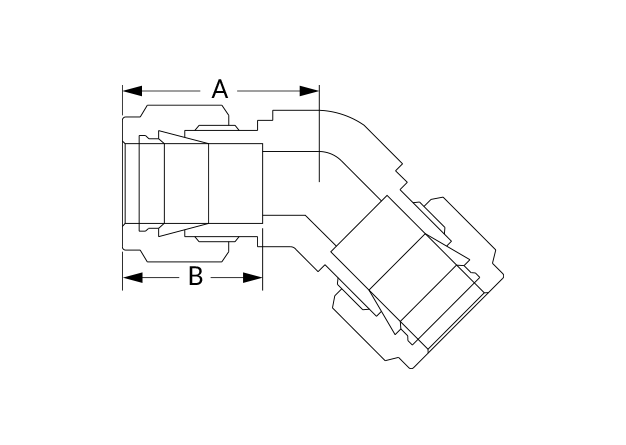

45° Compression Tube Union Elbow (SHUE)
| Part # | Tube Size (in) | A (in) | B (in) |
|---|---|---|---|
| SHUE-2 | 1/8 | 0.87 | 0.59 |
| SHUE-4 | 1/4 | 0.97 | 0.70 |
| SHUE-6 | 3/8 | 1.10 | 0.76 |
| SHUE-8 | 1/2 | 1.26 | 0.86 |
| SHUE-12 | 3/4 | 1.24 | 0.86 |
| SHUE-16 | 1 | 1.59 | 1.04 |

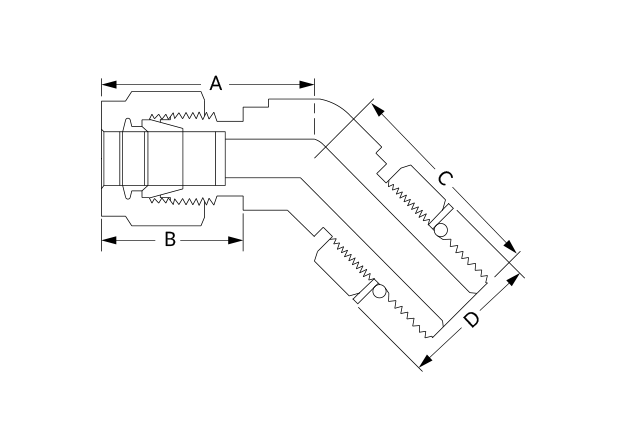

45° Male SAE X Compression Tube Positionable Elbow (SPHME)
| Part # | Tube Size (in) | Thread (in) | A (in) | B (in) | C (in) | D (in) |
|---|---|---|---|---|---|---|
| SPHME-4-4U | 1/4 | 7/16-20 | 1.01 | 0.70 | 1.01 | 0.65 |
| SPHME-6-6U | 3/8 | 9/16-18 | 1.10 | 0.76 | 1.11 | 0.79 |
| SPHME-8-8U | 1/2 | 3/4-16 | 1.26 | 0.86 | 1.27 | 1.01 |
| SPHME-12-12U | 3/4 | 1-1/16-12 | 1.57 | 0.98 | 1.86 | 1.44 |
| SPHME-16-16U | 1 | 1-5/16-12 | 1.87 | 1.04 | 1.99 | 1.73 |
Reducers
Compression Tube x Tube Stub Reducer (SR)
| Part # | Tube Size (in) | Tube Stub (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SR-2-1 | 1/8 | 1/16 | 0.88 | 0.13 | 1.14 |
| SR-2-2 | 1/8 | 1/8 | 1.06 | 0.13 | 1.32 |
| SR-2-3 | 1/8 | 3/16 | 1.09 | 0.13 | 1.35 |
| SR-2-4 | 1/8 | 1/4 | 1.16 | 0.13 | 1.42 |
| SR-2-6 | 1/8 | 3/8 | 1.22 | 0.13 | 1.48 |
| SR-2-8 | 1/8 | 1/2 | 1.48 | 0.13 | 1.74 |
| SR-3-2 | 3/16 | 1/8 | 1.11 | 0.19 | 1.37 |
| SR-3-4 | 3/16 | 1/4 | 1.20 | 0.19 | 1.46 |
| SR-4-2 | 1/4 | 1/8 | 1.16 | 0.25 | 1.45 |
| SR-4-3 | 1/4 | 3/16 | 1.19 | 0.25 | 1.48 |
| SR-4-4 | 1/4 | 1/4 | 1.25 | 0.25 | 1.54 |
| SR-4-5 | 1/4 | 5/16 | 1.28 | 0.25 | 1.57 |
| SR-4-6 | 1/4 | 3/8 | 1.31 | 0.25 | 1.60 |
| SR-4-8 | 1/4 | 1/2 | 1.53 | 0.25 | 1.82 |
| SR-4-10 | 1/4 | 5/8 | 1.60 | 0.25 | 1.89 |
| SR-4-12 | 1/4 | 3/4 | 1.63 | 0.25 | 1.88 |
| SR-5-6 | 5/16 | 3/8 | 1.36 | 0.31 | 1.65 |
| SR-5-8 | 5/16 | 1/2 | 1.58 | 0.31 | 1.87 |
| SR-6-4 | 3/8 | 1/4 | 1.34 | 0.38 | 1.63 |
| SR-6-6 | 3/8 | 3/8 | 1.41 | 0.38 | 1.70 |
| SR-6-8 | 3/8 | 1/2 | 1.62 | 0.38 | 1.91 |
| SR-6-10 | 3/8 | 5/8 | 1.69 | 0.38 | 1.98 |
| SR-6-12 | 3/8 | 3/4 | 1.69 | 0.38 | 1.98 |
| SR-8-4 | 1/2 | 1/4 | 1.37 | 0.50 | 1.77 |
| SR-8-6 | 1/2 | 3/8 | 1.44 | 0.50 | 1.84 |
| SR-8-8 | 1/2 | 1/2 | 1.66 | 0.50 | 2.06 |
| SR-8-10 | 1/2 | 5/8 | 1.72 | 0.50 | 2.12 |
| SR-8-12 | 1/2 | 3/4 | 1.72 | 0.50 | 2.12 |
| SR-8-16 | 1/2 | 1 | 1.97 | 0.50 | 2.37 |
| SR-10-12 | 5/8 | 3/4 | 1.75 | 0.63 | 2.15 |
| SR-10-14 | 5/8 | 7/8 | 1.81 | 0.63 | 2.21 |
| SR-10-16 | 5/8 | 1 | 2.00 | 0.63 | 2.40 |
| SR-12-8 | 3/4 | 1/2 | 1.75 | 0.75 | 2.15 |
| SR-12-16 | 3/4 | 1 | 2.06 | 0.75 | 2.46 |

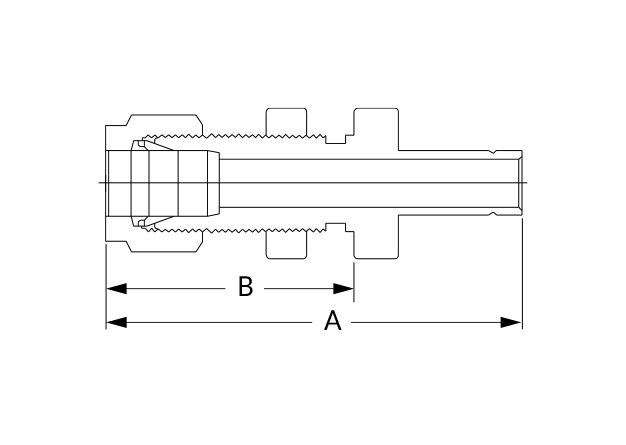

Compression Tube X Tube Stub Bulkhead Reducer (SBR)
| Part # | Tube Size (in) | A (in) | B (in) |
|---|---|---|---|
| SBR-2-2 | 1/8 | 1.95 | 1.23 |
| SBR-4-4 | 1/4 | 2.20 | 1.32 |
| SBR-6-6 | 3/8 | 2.41 | 1.45 |
| SBR-8-8 | 1/2 | 2.87 | 1.65 |
| SBR-10-10 | 5/8 | 2.96 | 1.68 |
| SBR-16-16 | 1 | 3.95 | 2.26 |
Tees and Crosses

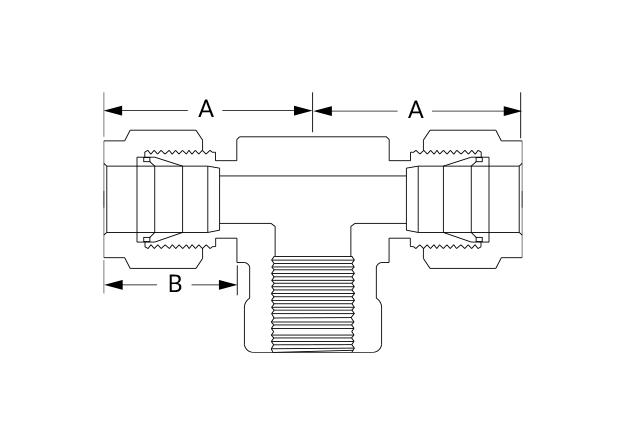

Female Branch Tees - Compression Tube X FNPT (SFBT)
| Part # | Tube Size (in) | NPT (in) | A (in) | B (in) |
|---|---|---|---|---|
| SFBT-2-2N | 1/8 | 1/8 | 0.97 | 0.60 |
| SFBT-4-2N | 1/4 | 1/8 | 1.06 | 0.70 |
| SFBT-4-4N | 1/4 | 1/4 | 1.17 | 0.70 |
| SFBT-6-4N | 3/8 | 1/4 | 1.23 | 0.76 |
| SFBT-6-6N | 3/8 | 3/8 | 1.31 | 0.76 |
| SFBT-6-8N | 3/8 | 1/2 | 1.42 | 0.76 |
| SFBT-8-4N | 1/2 | 1/4 | 1.42 | 0.86 |
| SFBT-8-6N | 1/2 | 3/8 | 1.42 | 0.86 |
| SFBT-8-8N | 1/2 | 1/2 | 1.53 | 0.86 |
| SFBT-10-8N | 5/8 | 1/2 | 1.53 | 0.86 |
| SFBT-12-12N | 3/4 | 3/4 | 1.76 | 0.86 |
| SFBT-16-12N | 1 | 3/4 | 1.93 | 1.04 |
| SFBT-16-16N | 1 | 1 | 2.11 | 1.04 |

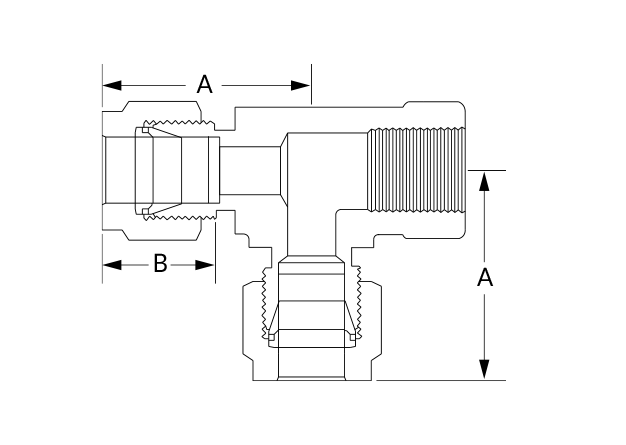

Female Run Tees - Compression Tube X FNPT (SFRT)
| Part # | Tube Size (in) | NPT (in) | A (in) | B (in) |
|---|---|---|---|---|
| SFRT-2-2N | 1/8 | 1/8 | 0.97 | 0.50 |
| SFRT-4-2N | 1/4 | 1/8 | 1.06 | 0.60 |
| SFRT-4-4N | 1/4 | 1/4 | 1.17 | 0.60 |
| SFRT-6-4N | 3/8 | 1/4 | 1.23 | 0.66 |
| SFRT-8-6N | 1/2 | 3/8 | 1.42 | 0.90 |
| SFRT-8-8N | 1/2 | 1/2 | 1.57 | 0.90 |
| SFRT-12-12N | 3/4 | 3/4 | 1.76 | 0.96 |
| SFRT-16-12N | 1 | 3/4 | 1.93 | 1.23 |
| SFRT-16-16N | 1 | 1 | 2.11 | 1.23 |

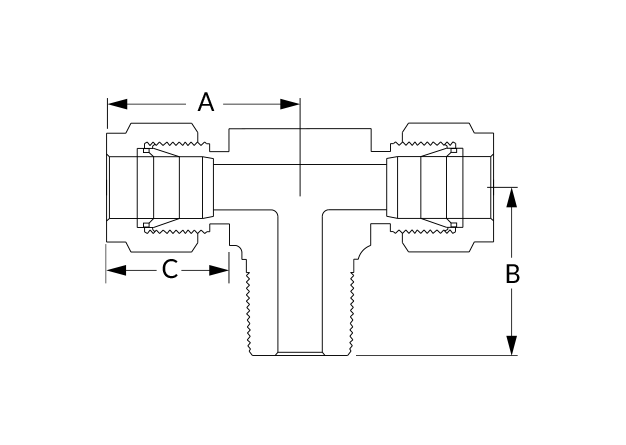

Male Branch Tees - Compression Tube X MNPT (SMBT)
| Part # | Tube Size (in) | NPT (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SMBT-2-2N | 1/8 | 1/8 | 0.98 | 0.74 | 0.60 |
| SMBT-2-4N | 1/8 | 1/4 | 0.97 | 0.92 | 0.60 |
| SMBT-3-2N | 3/16 | 1/8 | 1.00 | 0.74 | 0.63 |
| SMBT-4-2N | 1/4 | 1/8 | 1.06 | 0.74 | 0.70 |
| SMBT-4-4N | 1/4 | 1/4 | 1.06 | 0.92 | 0.70 |
| SMBT-5-2N | 5/16 | 1/8 | 1.17 | 0.82 | 0.73 |
| SMBT-6-4N | 3/8 | 1/4 | 1.20 | 1.00 | 0.76 |
| SMBT-6-6N | 3/8 | 3/8 | 1.20 | 1.11 | 0.76 |
| SMBT-8-6N | 1/2 | 3/8 | 1.42 | 1.11 | 0.86 |
| SMBT-8-8N | 1/2 | 1/2 | 1.42 | 1.30 | 0.86 |
| SMBT-10-8N | 5/8 | 1/2 | 1.53 | 1.41 | 0.86 |
| SMBT-12-12N | 3/4 | 3/4 | 1.57 | 1.45 | 0.86 |

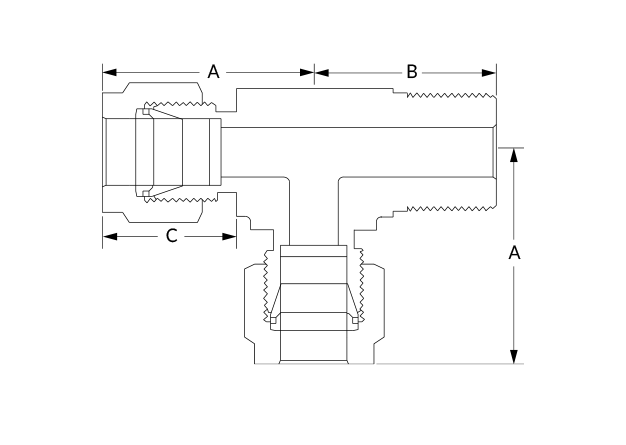

Male Run Tees - Compression Tube X MNPT (SMRT)
| Part # | Tube Size (in) | NPT (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SMRT-2-2N | 1/8 | 1/8 | 0.98 | 0.74 | 0.60 |
| SMRT-2-4N | 1/8 | 1/4 | 0.97 | 0.92 | 0.60 |
| SMRT-3-2N | 3/16 | 1/8 | 1.00 | 0.74 | 0.63 |
| SMRT-4-2N | 1/4 | 1/8 | 1.06 | 0.74 | 0.70 |
| SMRT-4-4N | 1/4 | 1/4 | 1.06 | 0.92 | 0.70 |
| SMRT-5-2N | 5/16 | 1/8 | 1.17 | 0.82 | 0.73 |
| SMRT-6-4N | 3/8 | 1/4 | 1.20 | 1.00 | 0.76 |
| SMRT-6-6N | 3/8 | 3/8 | 1.20 | 1.11 | 0.76 |
| SMRT-8-6N | 1/2 | 3/8 | 1.42 | 1.11 | 0.86 |
| SMRT-8-8N | 1/2 | 1/2 | 1.42 | 1.30 | 0.86 |
| SMRT-10-8N | 5/8 | 1/2 | 1.53 | 1.41 | 0.86 |
| SMRT-12-12N | 3/4 | 3/4 | 1.57 | 1.45 | 0.86 |

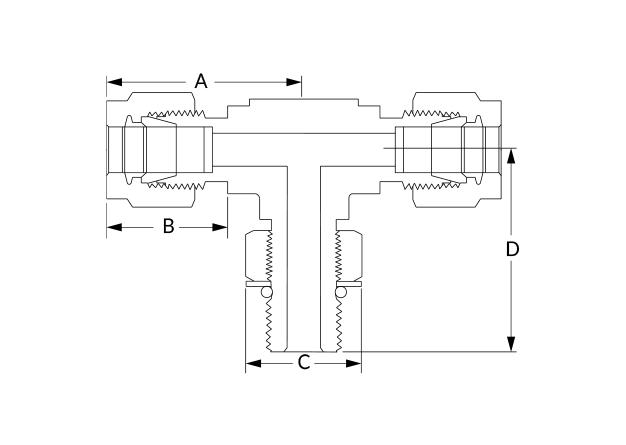

Positionable Male Branch Tees - Compression Tube X Male Threaded (SPMBT)
| Part # | Tube Size (in) | Male Thread (in) | A (in) | B (in) | C (in) | D (in) |
|---|---|---|---|---|---|---|
| SPMBT-4-2G | 1/4 | 1/8 | 1.06 | 0.70 | 0.68 | 1.04 |
| SPMBT-4-4G | 1/4 | 1/4 | 1.14 | 0.70 | 0.90 | 1.27 |
| SPMBT-6-4G | 3/8 | 1/4 | 1.20 | 0.76 | 0.90 | 1.27 |
| SPMBT-8-6G | 3/8 | 3/8 | 1.42 | 0.86 | 1.04 | 1.46 |
| SPMBT-8-8G | 1/2 | 1/2 | 1.50 | 0.86 | 1.26 | 1.71 |
| SPMBT-10-8G | 5/8 | 1/2 | 1.50 | 0.86 | 1.26 | 1.71 |
| SPMBT-12-8G | 3/4 | 1/2 | 1.57 | 0.86 | 1.26 | 1.78 |
| SPMBT-12-12G | 3/4 | 3/4 | 1.57 | 0.86 | 1.62 | 1.92 |
| SPMBT-16-16G | 1 | 1 | 1.93 | 1.04 | 1.91 | 2.11 |
Positionable Male Run Tees - Compression Tube X Male SAE (SPMRT)
| Part # | Tube Size (in) | Male Thread (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SPMRT-4-2G | 1/4 | 1/8 | 2.10 | 0.68 | 0.16 |
| SPMRT-4-4G | 1/4 | 1/4 | 2.41 | 0.90 | 0.19 |
| SPMRT-6-4G | 3/8 | 1/4 | 2.47 | 0.90 | 0.23 |
| SPMRT-8-6G | 3/8 | 3/8 | 2.88 | 1.04 | 0.31 |
| SPMRT-8-8G | 1/2 | 1/2 | 3.21 | 1.26 | 0.41 |
| SPMRT-10-8G | 5/8 | 1/2 | 3.21 | 1.26 | 0.47 |
| SPMRT-12-8G | 3/4 | 1/2 | 3.35 | 1.26 | 0.47 |
| SPMRT-12-12G | 3/4 | 3/4 | 3.49 | 1.62 | 0.62 |
| SPMRT-16-16G | 1 | 1 | 4.04 | 1.91 | 0.78 |
Union Tees - Compression Tube (SUT)
| Part # | Tube Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| SUT-1 | 1/16 | 1.42 | 0.71 | 0.05 |
| SUT-2 | 1/8 | 1.76 | 0.88 | 0.09 |
| SUT-3 | 3/16 | 1.98 | 0.99 | 0.12 |
| SUT-4 | 1/4 | 2.16 | 1.08 | 0.19 |
| SUT-5 | 5/16 | 2.34 | 1.17 | 0.25 |
| SUT-6 | 3/8 | 2.40 | 1.20 | 0.28 |
| SUT-8 | 1/2 | 2.84 | 1.42 | 0.41 |
| SUT-10 | 5/8 | 3.06 | 1.53 | 0.50 |
| SUT-12 | 3/4 | 3.14 | 1.57 | 0.62 |
| SUT-14 | 7/8 | 3.51 | 1.76 | 0.72 |
| SUT-16 | 1 | 3.86 | 1.93 | 0.88 |
| SUT-20 | 1-1/4 | 5.24 | 2.62 | 1.09 |
| SUT-24 | 1-1/2 | 6.14 | 3.07 | 1.34 |
| SUT-32 | 2 | 8.44 | 4.22 | 1.81 |
Reducing Union Tees - Compression Tube (SRUT)
| Part # | Tube Size (in) | Reducing Tube Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SRUT-6-4 | 3/8 | 1/4 | 1.82 | 0.19 | 2.40 |
| SRUT-8-4 | 1/2 | 1/4 | 2.04 | 0.19 | 2.84 |
| SRUT-8-6 | 1/2 | 3/8 | 2.04 | 0.28 | 2.84 |
| SRUT-10-6 | 5/8 | 3/8 | 2.26 | 0.28 | 3.06 |
| SRUT-12-6 | 3/4 | 3/8 | 2.34 | 0.28 | 3.14 |
| SRUT-12-8 | 3/4 | 1/2 | 2.34 | 0.41 | 3.14 |
| SRUT-16-6 | 1 | 3/8 | 2.90 | 0.28 | 3.86 |
| SRUT-16-8 | 1 | 1/2 | 2.90 | 0.41 | 3.86 |
| SRUT-16-12 | 1 | 3/4 | 2.90 | 0.62 | 3.86 |

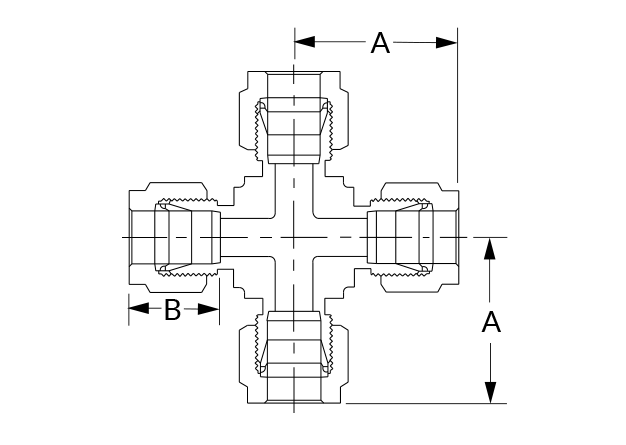

Union Crosses - Compression Tube (SUC)
| Part # | Tube Size (in) | A (in) | B (in) |
|---|---|---|---|
| SUC-1 | 1/16 | 0.71 | 0.34 |
| SUC-2 | 1/8 | 0.88 | 0.50 |
| SUC-3 | 3/16 | 0.99 | 0.54 |
| SUC-4 | 1/4 | 1.06 | 0.60 |
| SUC-5 | 5/16 | 1.17 | 0.64 |
| SUC-6 | 3/8 | 1.20 | 0.66 |
| SUC-8 | 1/2 | 1.42 | 0.90 |
| SUC-10 | 5/8 | 1.53 | 0.96 |
| SUC-12 | 3/4 | 1.57 | 0.96 |
| SUC-14 | 7/8 | 1.76 | 1.02 |
| SUC-16 | 1 | 1.93 | 1.23 |
Unions
Compression Tube Union (SU)
| Part # | Tube Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|
| SU-1 | 1/16 | 0.69 | 0.06 | 0.99 |
| SU-2 | 1/8 | 0.88 | 0.13 | 1.40 |
| SU-3 | 3/16 | 0.95 | 0.19 | 1.47 |
| SU-4 | 1/4 | 1.03 | 0.25 | 1.61 |
| SU-5 | 5/16 | 1.11 | 0.31 | 1.69 |
| SU-6 | 3/8 | 1.19 | 0.36 | 1.77 |
| SU-8 | 1/2 | 1.22 | 0.50 | 2.01 |
| SU-10 | 5/8 | 1.25 | 0.63 | 2.05 |
| SU-12 | 3/4 | 1.31 | 0.75 | 2.11 |
| SU-14 | 7/8 | 1.37 | 0.88 | 2.17 |
| SU-16 | 1 | 1.59 | 1.00 | 2.55 |
| SU-20 | 1-1/4 | 1.89 | 1.25 | 3.63 |
| SU-24 | 1-1/2 | 2.11 | 1.50 | 4.25 |
| SU-32 | 2 | 2.94 | 2.00 | 5.88 |
Compression Tube Reducing Union (SRU)
| Part # | Tube Size (in) | Reducing Tube Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|---|---|
| SRU-2-1 | 1/8 | 1/16 | 0.81 | 0.05 | 1.22 |
| SRU-3-2 | 3/16 | 1/8 | 0.92 | 0.09 | 1.44 |
| SRU-4-2 | 1/4 | 1/8 | 0.97 | 0.09 | 1.52 |
| SRU-4-3 | 1/4 | 3/16 | 1.00 | 0.12 | 1.55 |
| SRU-5-2 | 5/16 | 1/8 | 1.02 | 0.09 | 1.57 |
| SRU-5-4 | 5/16 | 1/4 | 1.08 | 0.19 | 1.66 |
| SRU-6-2 | 3/8 | 1/8 | 1.06 | 0.09 | 1.61 |
| SRU-6-4 | 3/8 | 1/4 | 1.12 | 0.19 | 1.70 |
| SRU-6-5 | 3/8 | 5/16 | 1.16 | 0.25 | 1.74 |
| SRU-8-2 | 1/2 | 1/8 | 1.12 | 0.09 | 1.78 |
| SRU-8-4 | 1/2 | 1/4 | 1.16 | 0.19 | 1.85 |
| SRU-8-6 | 1/2 | 3/8 | 1.22 | 0.28 | 1.91 |
| SRU-10-6 | 5/8 | 3/8 | 1.25 | 0.28 | 1.94 |
| SRU-10-8 | 5/8 | 1/2 | 1.25 | 0.71 | 2.05 |
| SRU-12-4 | 3/4 | 1/4 | 1.25 | 0.19 | 1.94 |
| SRU-12-6 | 3/4 | 3/8 | 1.31 | 0.28 | 2.00 |
| SRU-12-8 | 3/4 | 1/2 | 1.31 | 0.41 | 2.11 |
| SRU-12-10 | 3/4 | 5/8 | 1.31 | 0.50 | 2.11 |
| SRU-16-8 | 1 | 1/2 | 1.56 | 0.41 | 2.49 |
| SRU-16-12 | 1 | 3/4 | 1.54 | 0.62 | 2.47 |

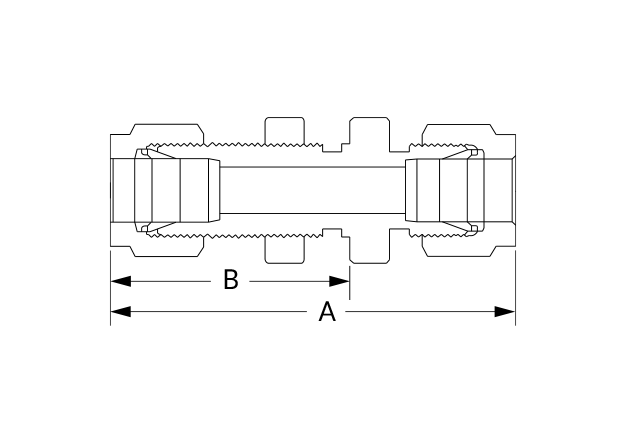

Compression Tube Bulkhead Union (SBHU)
| Part # | Tube Size (in) | A (in) | B (in) |
|---|---|---|---|
| SBHU-1 | 1/16 | 1.24 | 0.68 |
| SBHU-2 | 1/8 | 2.02 | 1.23 |
| SBHU-3 | 3/16 | 2.11 | 1.26 |
| SBHU-4 | 1/4 | 2.27 | 1.32 |
| SBHU-5 | 5/16 | 2.39 | 1.41 |
| SBHU-6 | 3/8 | 2.45 | 1.45 |
| SBHU-8 | 1/2 | 2.80 | 1.65 |
| SBHU-10 | 5/8 | 2.86 | 1.68 |
| SBHU-12 | 3/4 | 3.11 | 1.87 |
| SBHU-14 | 7/8 | 3.33 | 2.09 |
| SBHU-16 | 1 | 3.77 | 2.26 |

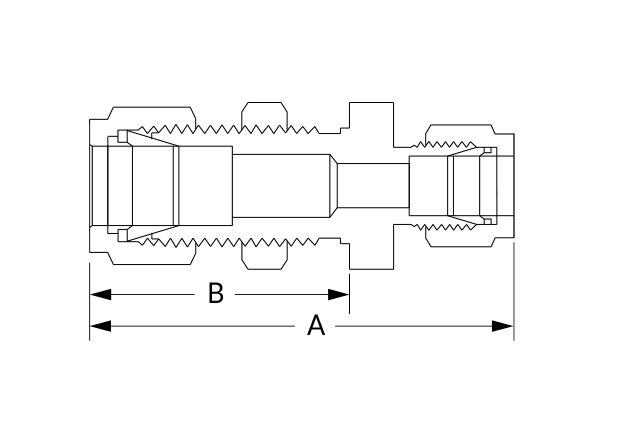

Compression Tube Reducing Bulkhead Union (SBHRU)
| Part # | Tube Size (in) | Reducing Tube Size (in) | A (in) | B (in) |
|---|---|---|---|---|
| SBHRU-4-2 | 1/4 | 1/8 | 2.17 | 1.32 |
| SBHRU-6-4 | 3/8 | 1/4 | 2.39 | 1.44 |
| SBHRU-8-4 | 1/2 | 1/4 | 2.63 | 1.65 |
Product Resources
See all resources by SuperlokLiterature
- Superlok Compression Fitting Part Cross References
- Superlok Fittings Catalog
-
Adapters
-
Caps and Plugs
-
Connectors
Create a MyCSI Dashboard to save resources for quick reference, track orders, and talk with experts.
Create a MyCSI Dashboard to save resources for quick reference, track orders, and talk with experts.
It only takes a minute.
Sign in
Sign in to save resource to your dashboard.
Literature for Compression Tube Fittings have been saved to your dashboard!
Literature for Compression Tube Fittings are already in your dashboard.
